Axle Shaft Assembly: Service and Repair

AR35.30-P-0620MCU Remove/Install Rear Axle Shaft

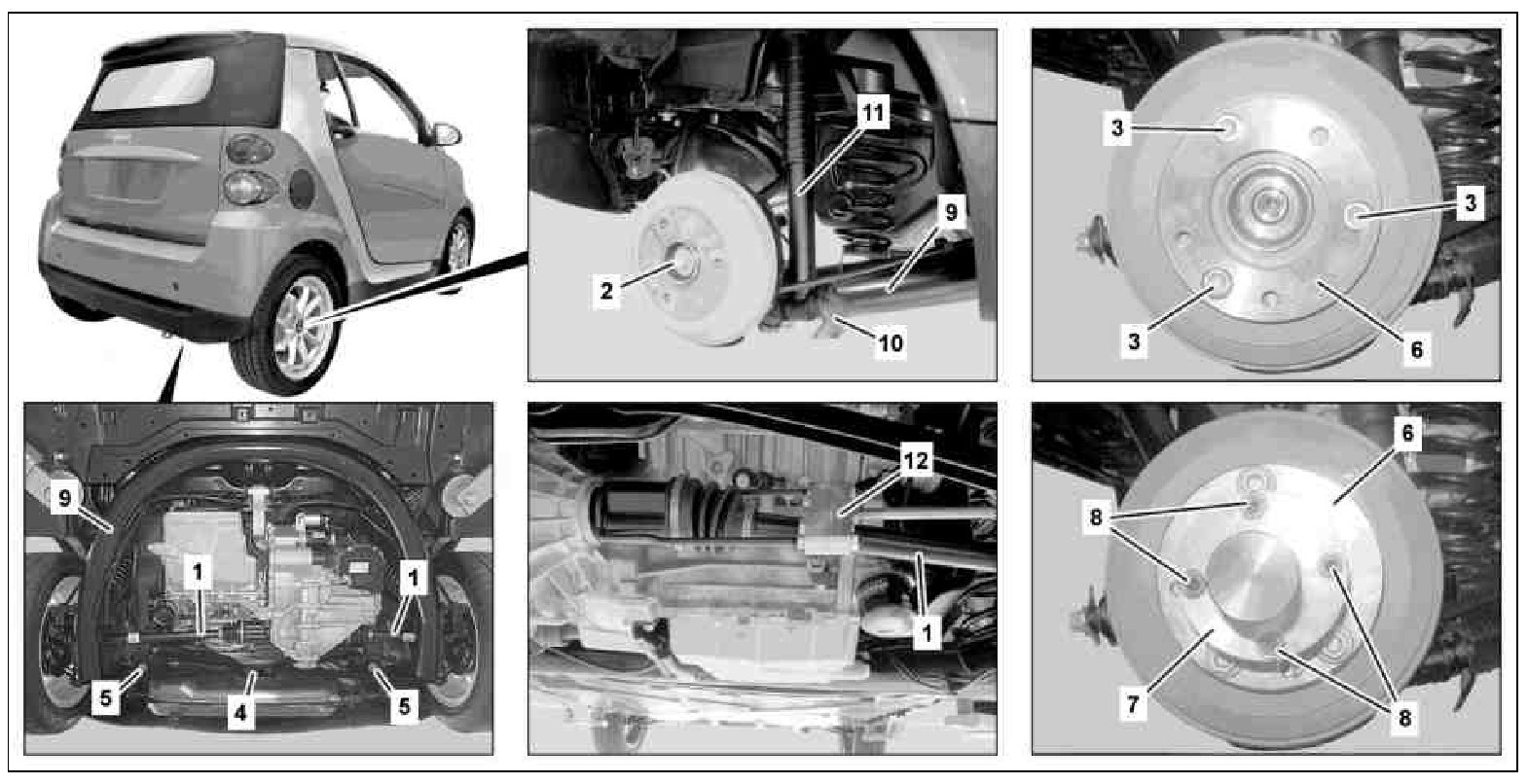

Shown on right side of vehicle







1 Rear axle shaft
2 Screw
3 Wheel bolt
4 Rear axle crossmember
5 Screw
6 Adapter
7 Extraction and installation tool
8 Bolts
9 Axle tube
10 Cover
11 Shock absorber
12 Extraction tool

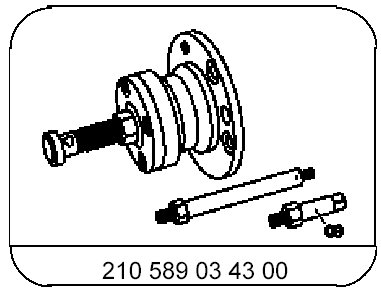

210 589 03 43 00, Extraction and insertion tool

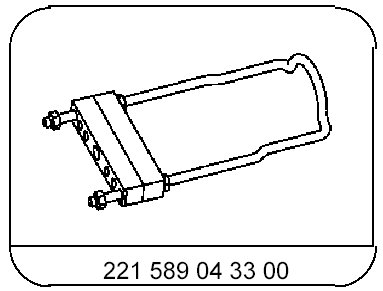

221 589 04 33 00, Extraction tool

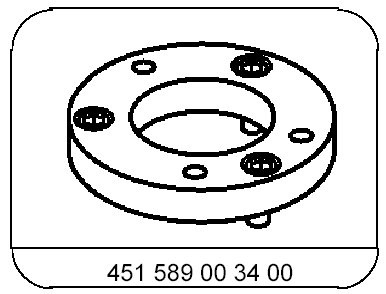

451 589 00 34 00, Adaptation







602 589 00 33 00, Impact extractor
