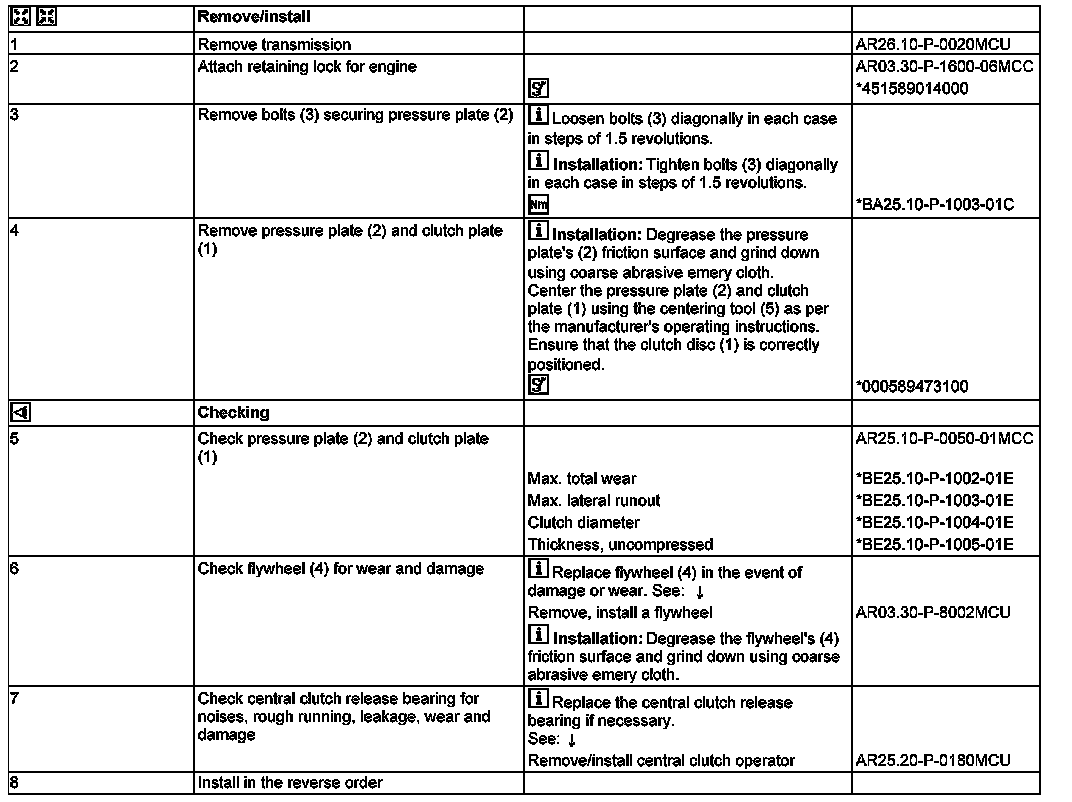

AR25.10-P-0050MCU Remove/Install Clutch

AR25.10-P-0050MCU Remove/Install Clutch
-With ENGINE 132.910 with TRANSMISSION 717.4

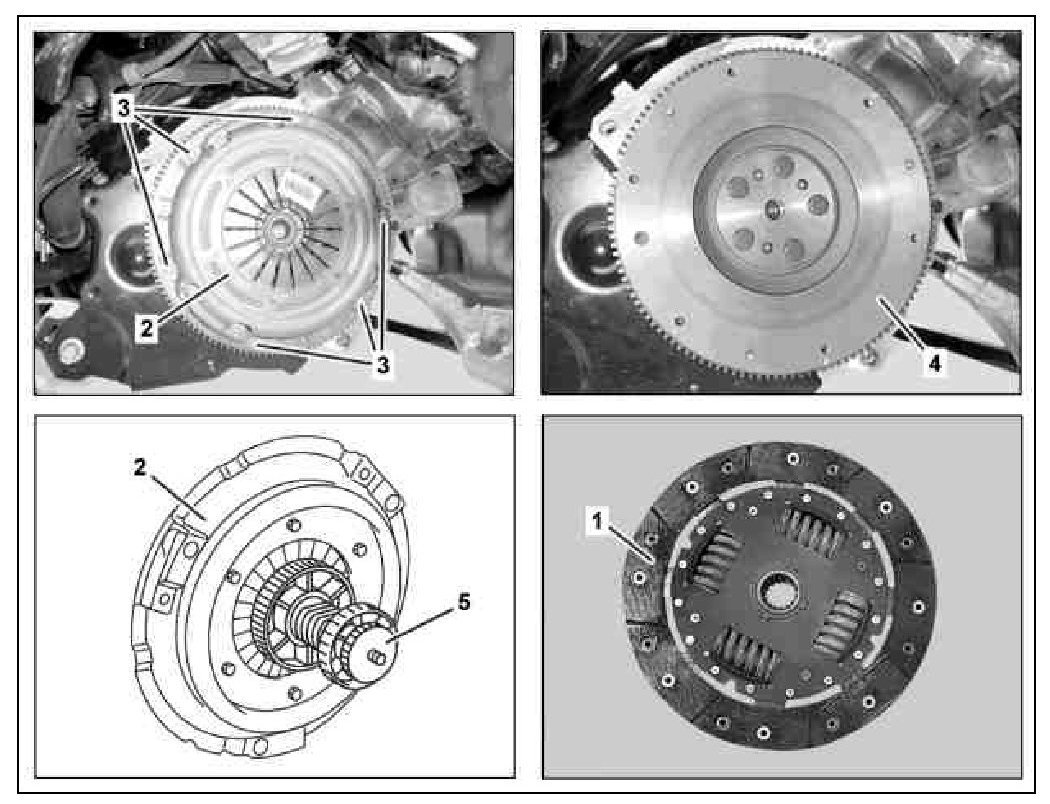

1 Clutch plate
2 Pressure plate
3 Bolts
4 Flywheel
5 Alignment tool

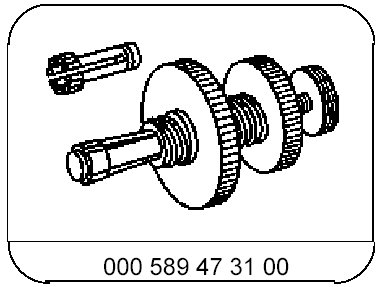

000 589 47 31 00, Centering tool







451 589 01 40 00, Retaining lock
