Power Steering Motor: Service and Repair

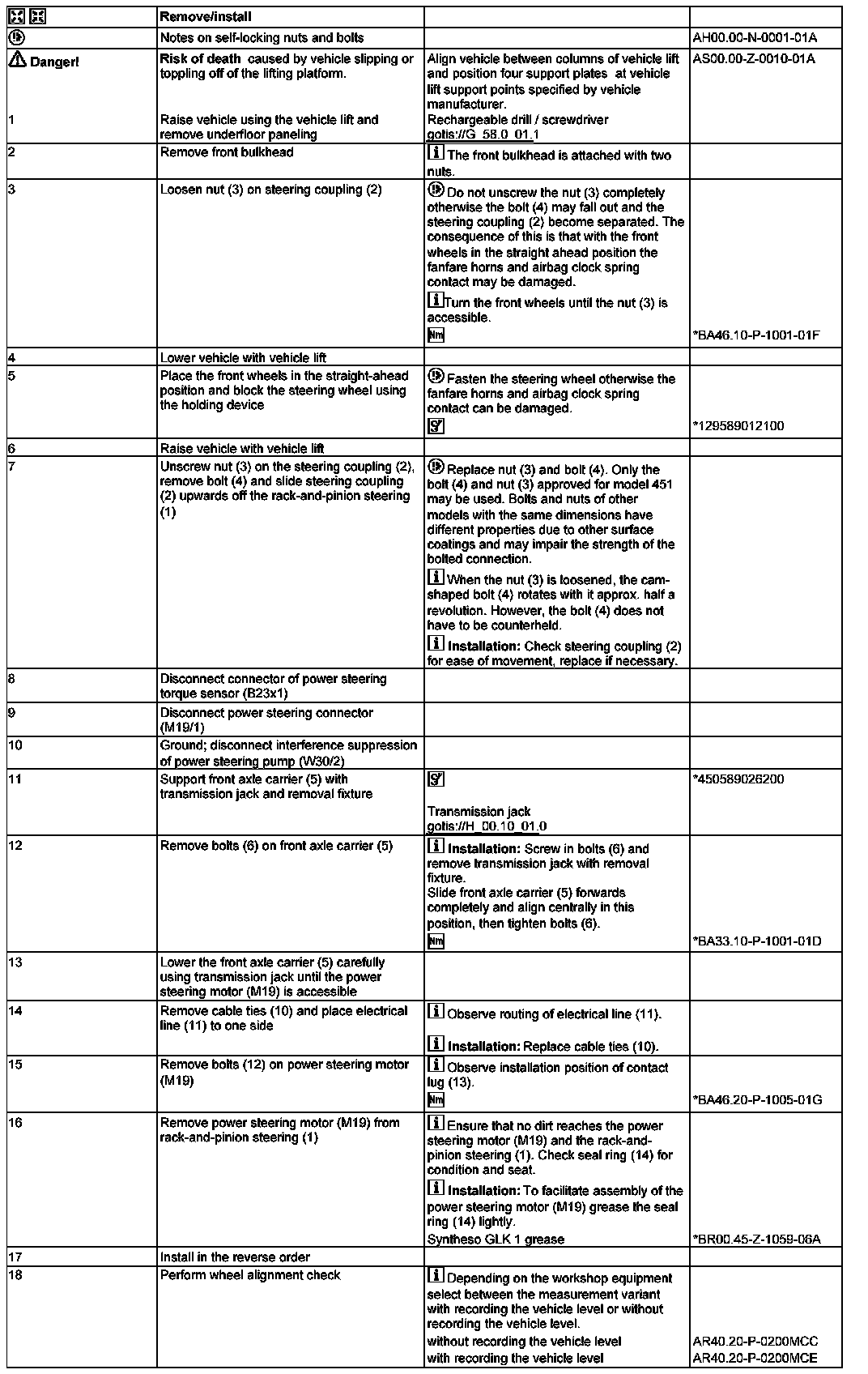

AR46.35-P-1002MCC Remove/Install Power Steering Electric Motor

With CODE (V26) Power steering, EPS (FFO)

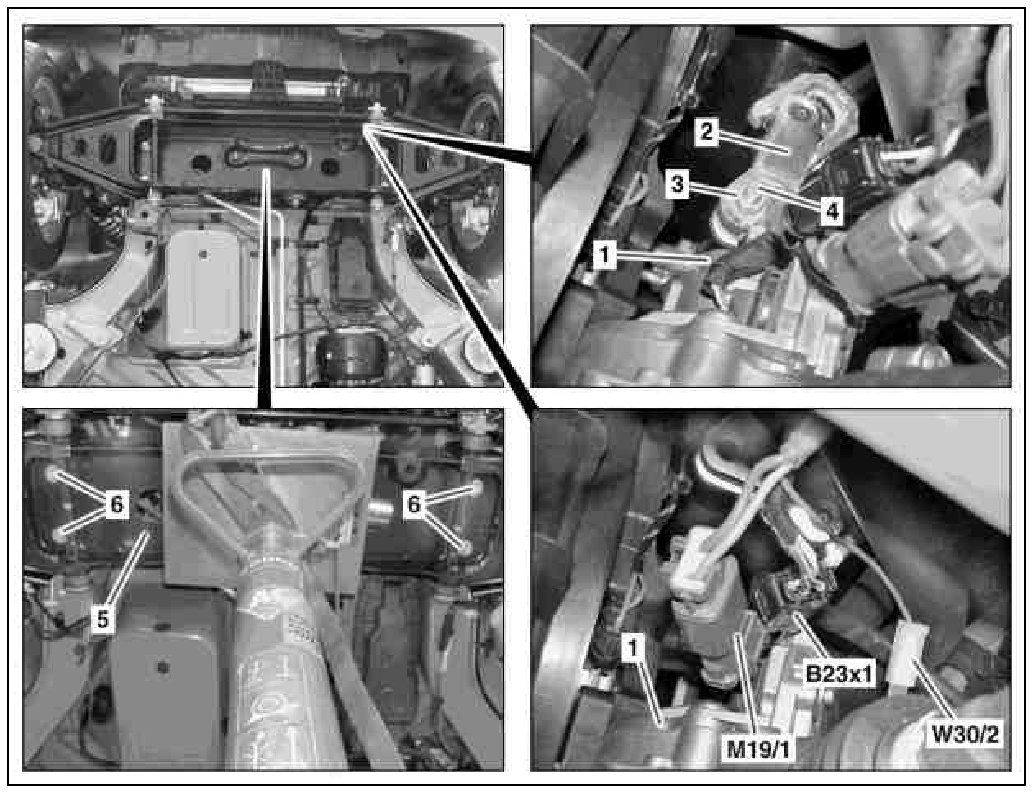

1 Rack-and-pinion steering

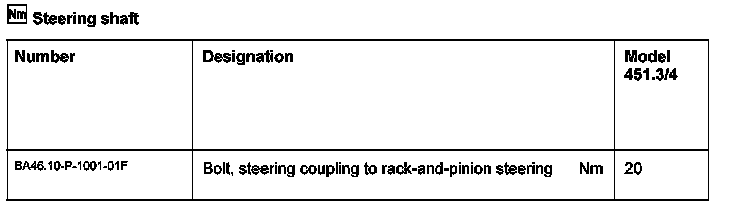

2 Steering coupling
3 Nut
4 Screw

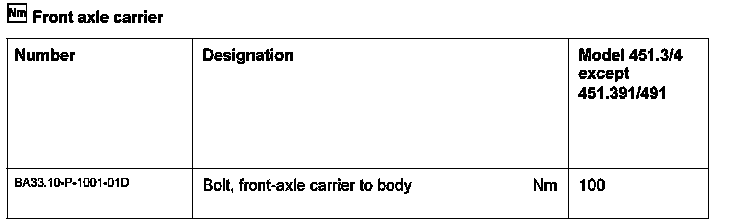

5 Front axle carrier
6 Bolts
B23x1 Power steering torque sensor connector
M19/1 Power steering connector
W30/2 Ground; power steering pump noise suppression

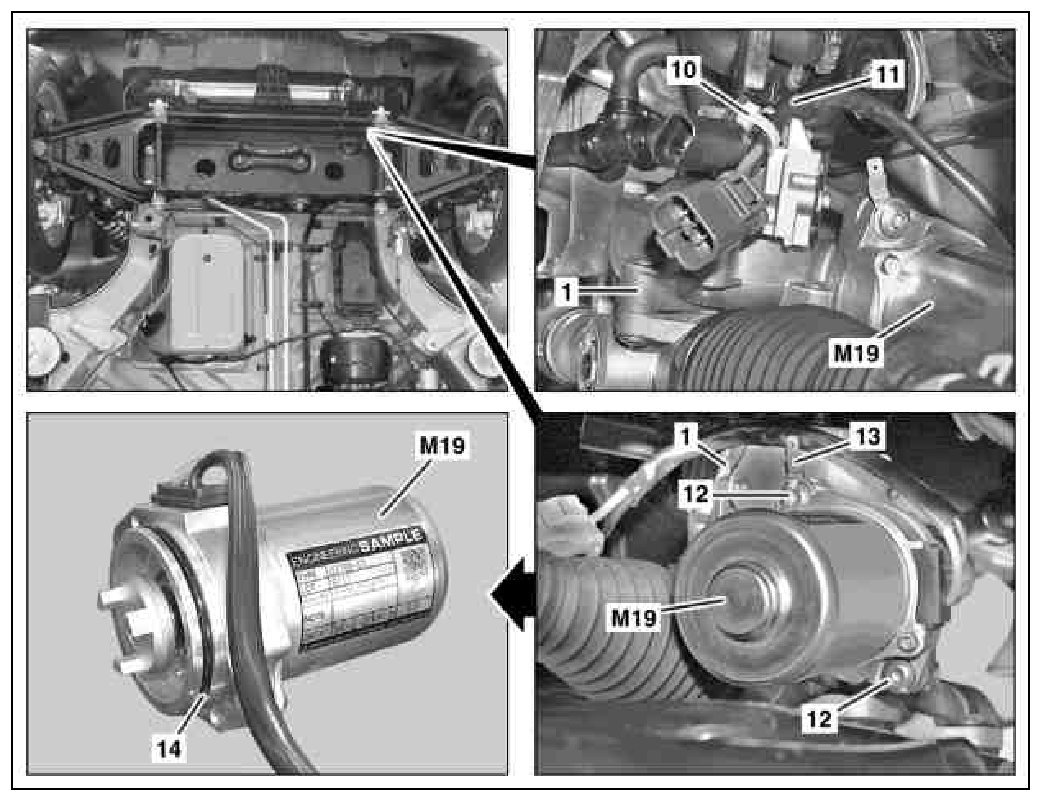

1 Rack-and-pinion steering
10 Cable tie
11 Electrical line
12 Screw
13 Contact lug
14 Sealing ring

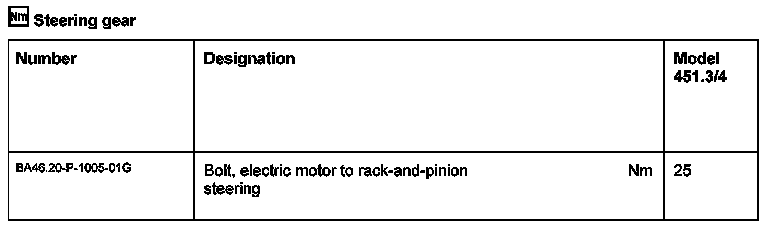

M19 Power steering motor
































129 589 01 21 00, Holding device







450 589 02 62 00, Removal assembly
