AR40.30-P-0402-03RR Carrying Out Distance And Comparative Measurement

AR40.30-P-0402-03RR Carrying Out Distance And Comparative Measurement

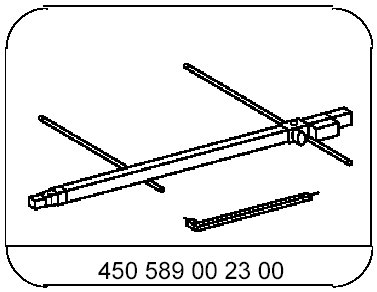

450 589 00 23 00, Gage

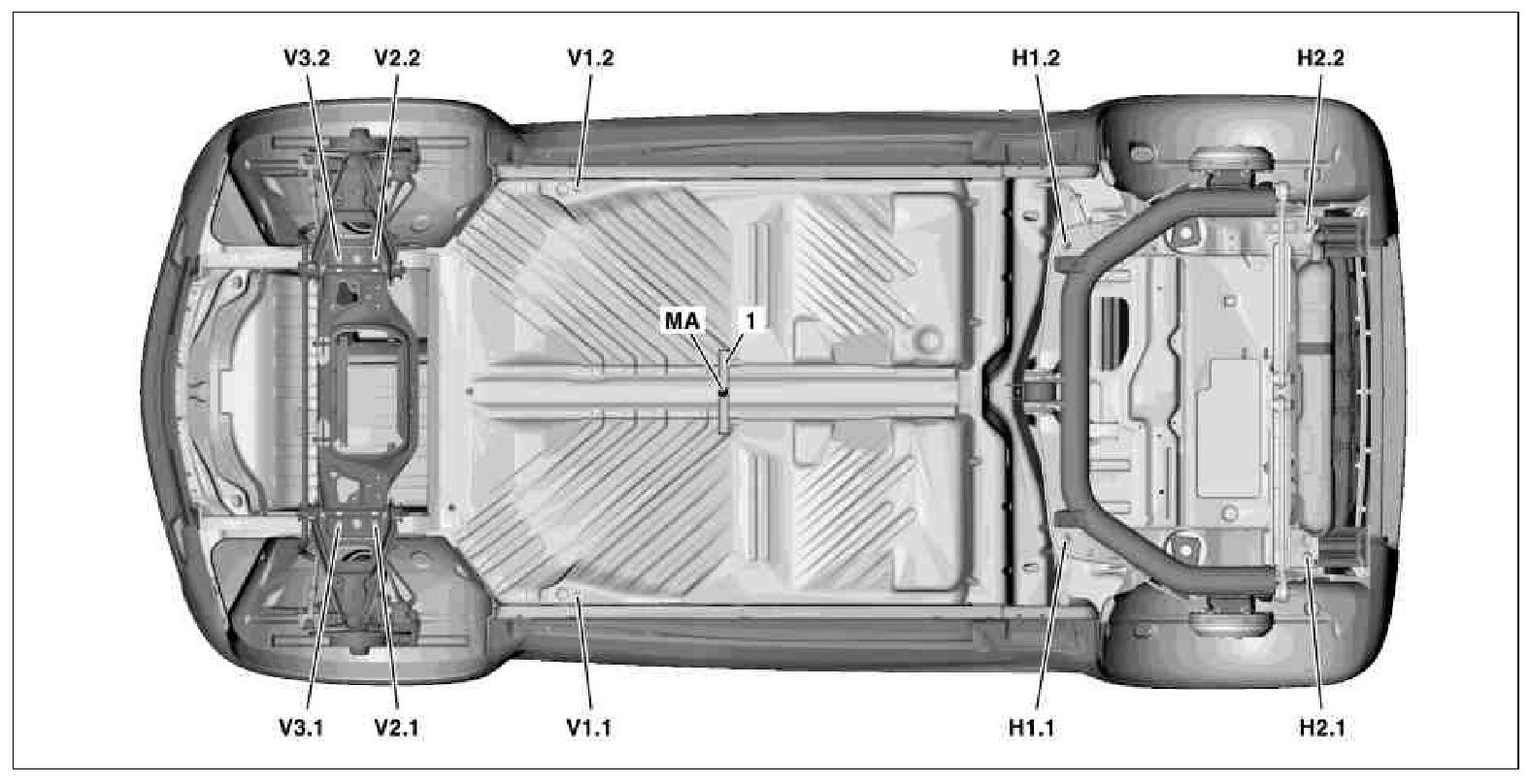

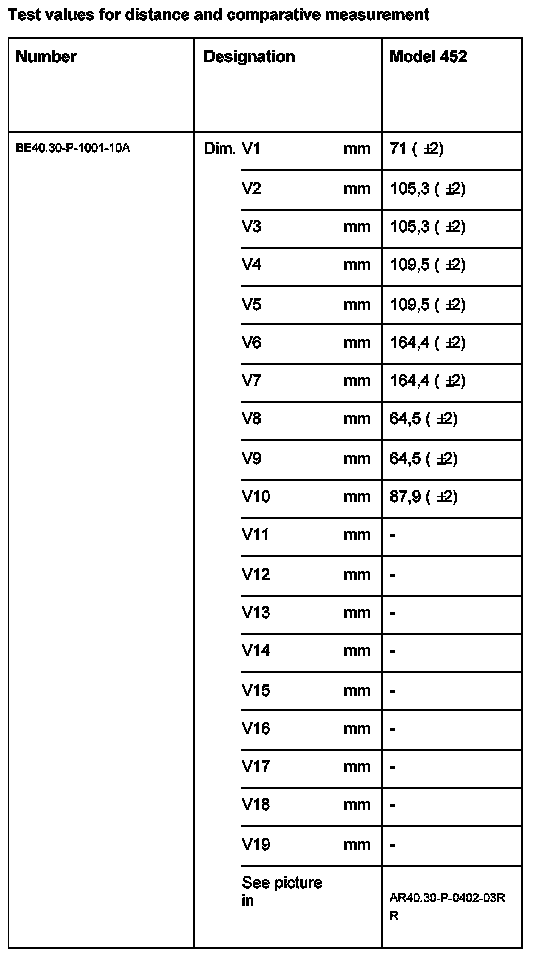

The respective dimension (V1 up to V10) should be read off on the leveled-out gauge. When axle bolts are used as measurement points the center points of these should be selected. The specified heights should be adjusted to the gauge before the start of each measurement.

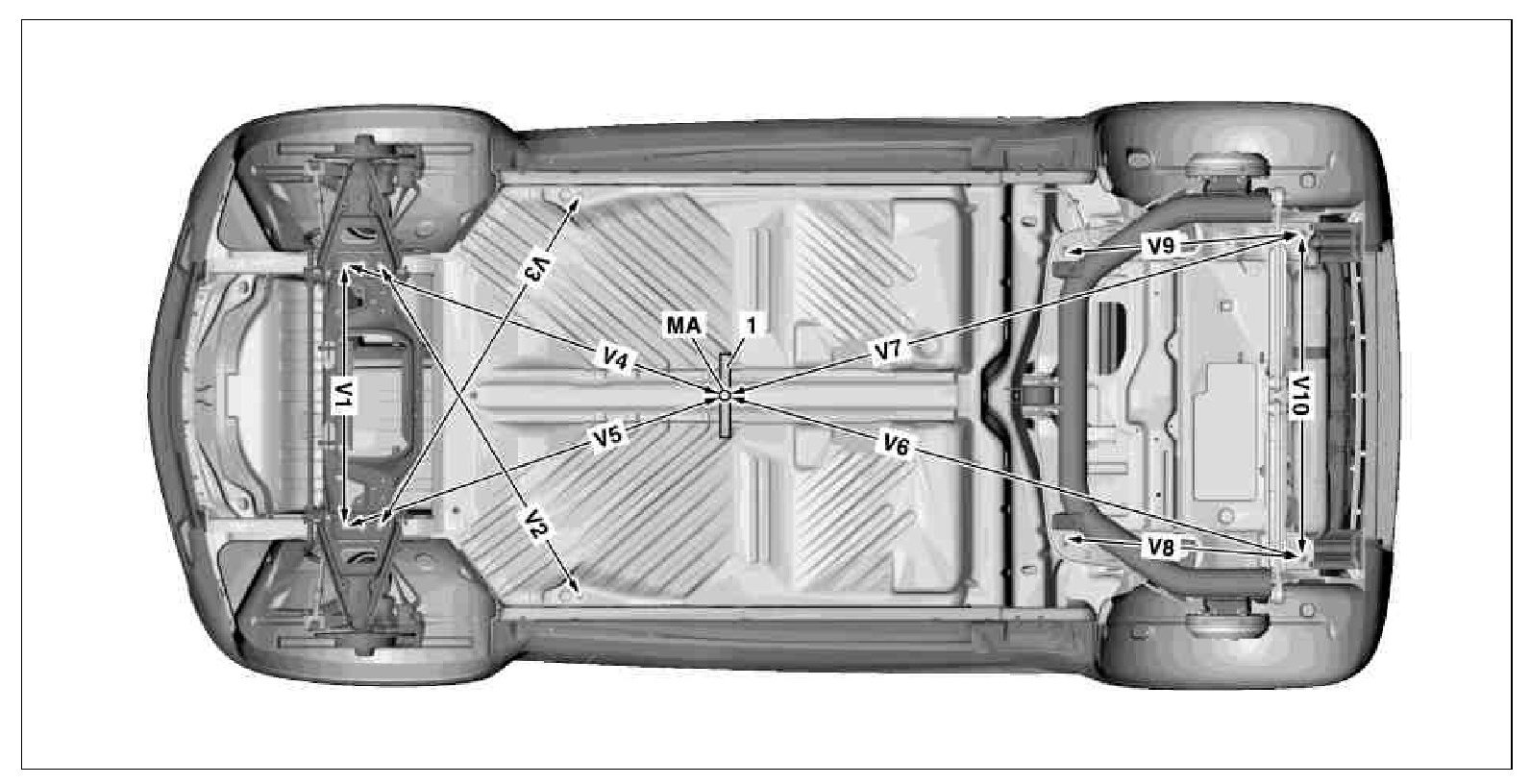

1 Determine dimension (V1) from measurement point (V3.1) to measurement point (V3.2).
The height to be adjusted for the measuring point (V3.1) and for the measuring point (V3.2) is 23 ±1 mm.

2 Determine the dimension (V2) from measurement point (V1.1) to measurement point (V2.2).
The height to be adjusted is 19.1 ±1 mm for the measuring point (V1.1) and 23 ±1 mm for the measuring point (V2.2).
The measuring point (V1.1) is a 2 mm dia. hole.

3 Determine the dimension (V3) from measurement point (V1.2) to measurement point (V2.1).
The height to be adjusted is 19.1 ±1mm for the measuring point (V1.2) and 23 ±1 mm for the measuring point (V2.1) 23 ±1 mm.
The measuring point (V1.2) is a 2 mm dia. hole.

4 Determine the dimension (V4) from measurement point (MA) to measurement point (V3.2).
The height to be adjusted for the measuring point (MA) and for the measuring point (V3.2) is 15.5 ±1 mm.

5 Determine the (V5) dimension from measurement point (MA) to measurement point (V3.1).
The height to be adjusted for the measuring point (MA) and for the measuring point (V3.1) is 15.5 ±1 mm.

6 Determine the dimension (V6) from measurement point (MA) to measurement point (H2.1).
The height to be adjusted for the measuring point (MA) and for the measuring point (H2.1) is 36.7 ±1 mm.

7 Determine the dimension (V7) from measurement point (MA) to measurement point (H2.2).
The height to be adjusted for the measuring point (MA) and for the measuring point (H2.2) is 36.7 ±1 mm.

8 Determine the dimension (V8) from measurement point (H2.1) to measurement point (H1.1).
The height to be adjusted is 23 ±1 mm for the measuring point (H2.1) and 30.2 ±1 mm for the measuring point (H1.1).

9 Determine the dimension (V9) from measurement point (H2.2) to measurement point (H1.2).
The height to be adjusted is 23 ±1 mm for the measuring point (H2.2) and 30.2 ±1 mm for the measuring point (H1.2).

10 Determine dimension (V10) from measurement point (H2.1) to measurement point (H2.2).
The height to be adjusted for the measuring point (H2.1) and for the measuring point (H2.2) is 23 ±1 mm.
