Starter Motor: Service and Repair

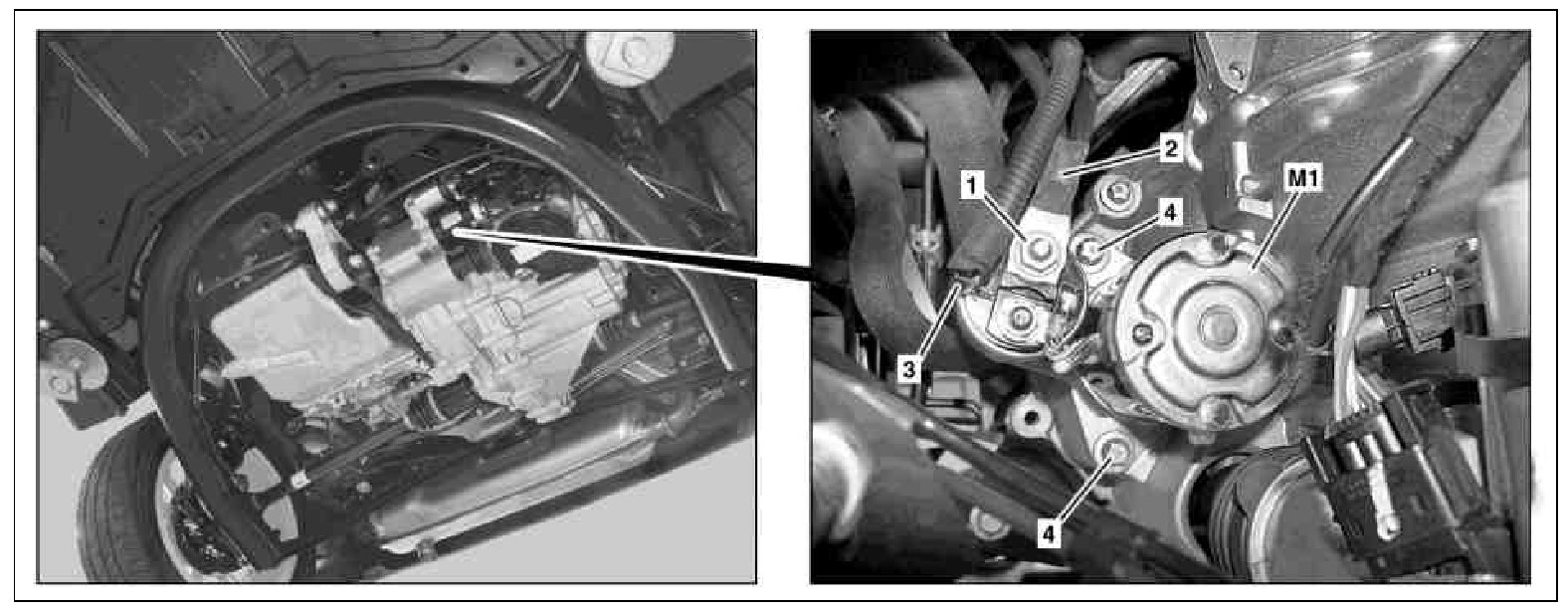

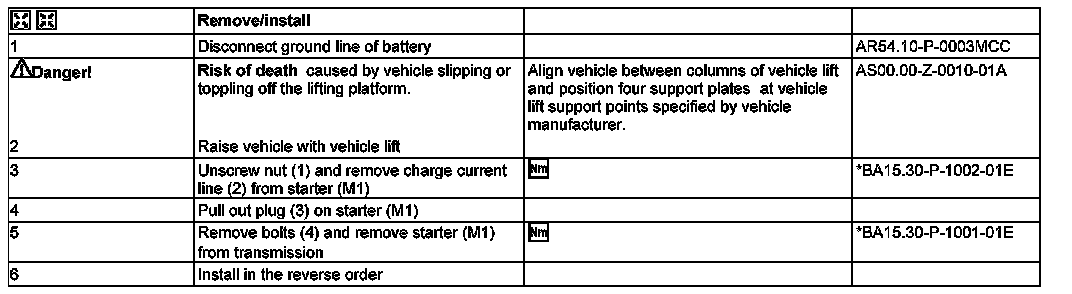

AR15.30-P-7100MCU Remove/Install Starter







1 Nut
2 Charge current line
3 Connector
4 Bolt
M1 Starter
