AR00.19-P-0120-02B Remove Contacts From Sensor Laminated Contact Coupling

AR00.19-P-0120-02B Remove Contacts From Sensor Laminated Contact Coupling
- Sensor-blade contact coupling version 2







220 589 04 99 00, New passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic







220 589 01 99 50, Blade holder with clamping pliers

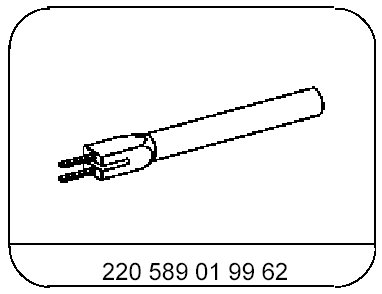

220 589 01 99 62, SLK 2.8 blade


Unfasten secondary release on version with locking bar







1 Using a suitable tool, push tabs of locking bar (1) in direction of arrow out of locked position.


Unfasten secondary release on version with locking slider

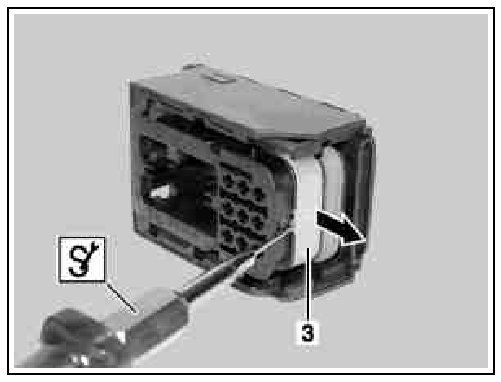

2 Using a suitable tool, move locking slider (3) in direction shown by arrow.


Unfasten secondary release on version with locking striker

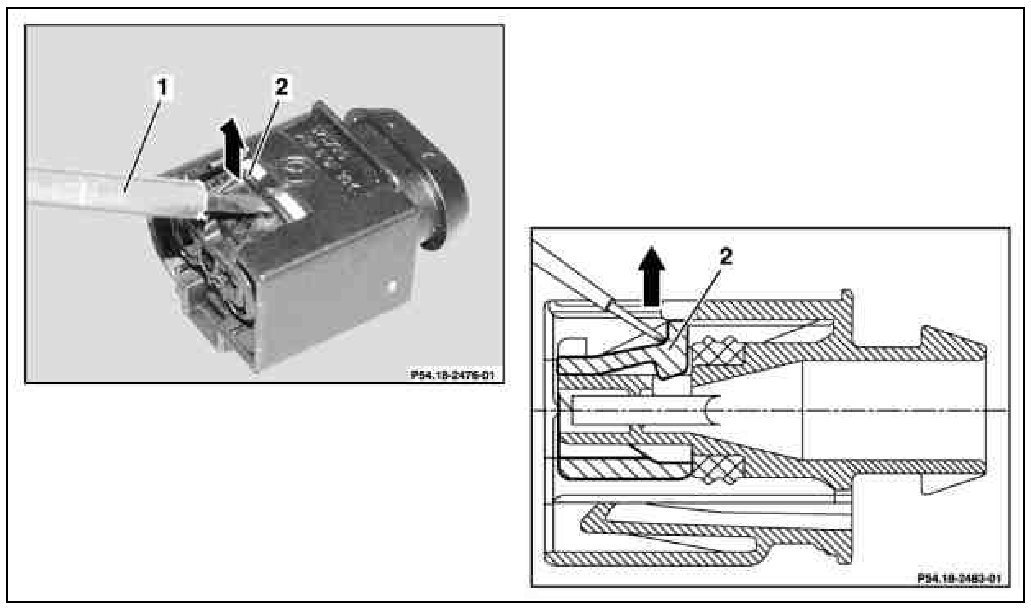

3 Using a suitable tool (1), press open the locking bar (2) in direction of arrow.
The seal may be damaged if the tool (1) is inserted too far. Prying up the locking striker (2) beyond the stop may destroy the locking striker (2).
The locking striker (2) remains unlocked when the female contacts are unpinned.

Unpin female contacts from coupling

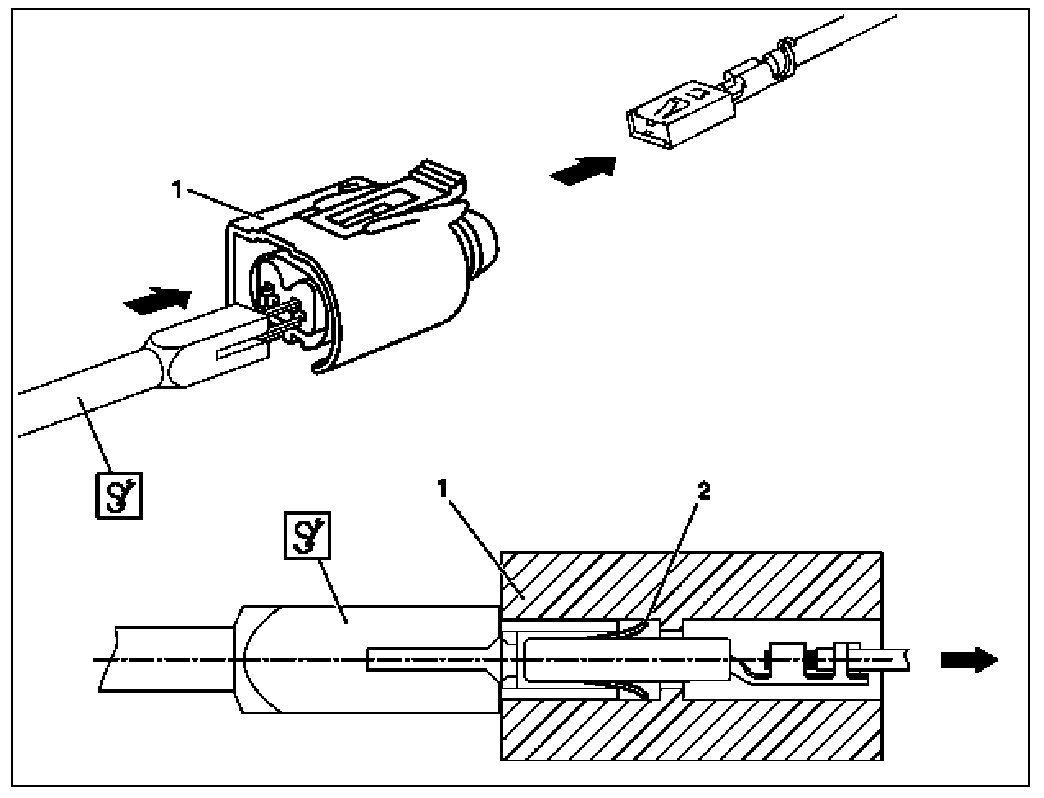

4 Insert blade holder with clamping pliers and SLK 2.8 blade from front side though openings at contact cavity of coupling (1).
This results in the spring shackles (2) being compressed.
5 A slight tug on the corresponding cable will remove the female contact from the coupling.
Rocking the contact pin back and forth, thus making use of the full housing tolerance, may help to unpin the contact.
