AR00.19-P-0120-02A Remove Contacts From Sensor Laminated Contact Coupling

AR00.19-P-0120-02A Remove Contacts From Sensor Laminated Contact Coupling
- Sensor-blade contact coupling Design 97







220 589 04 99 00, New passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic







220 589 01 99 50, Blade holder with clamping pliers

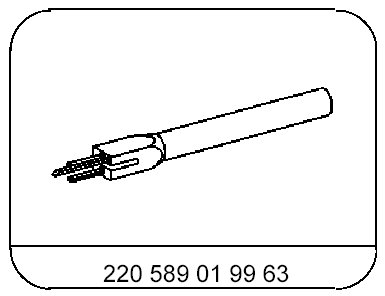

220 589 01 99 63, SLK 2.8 - 97 blade

Unpin female contacts from coupling

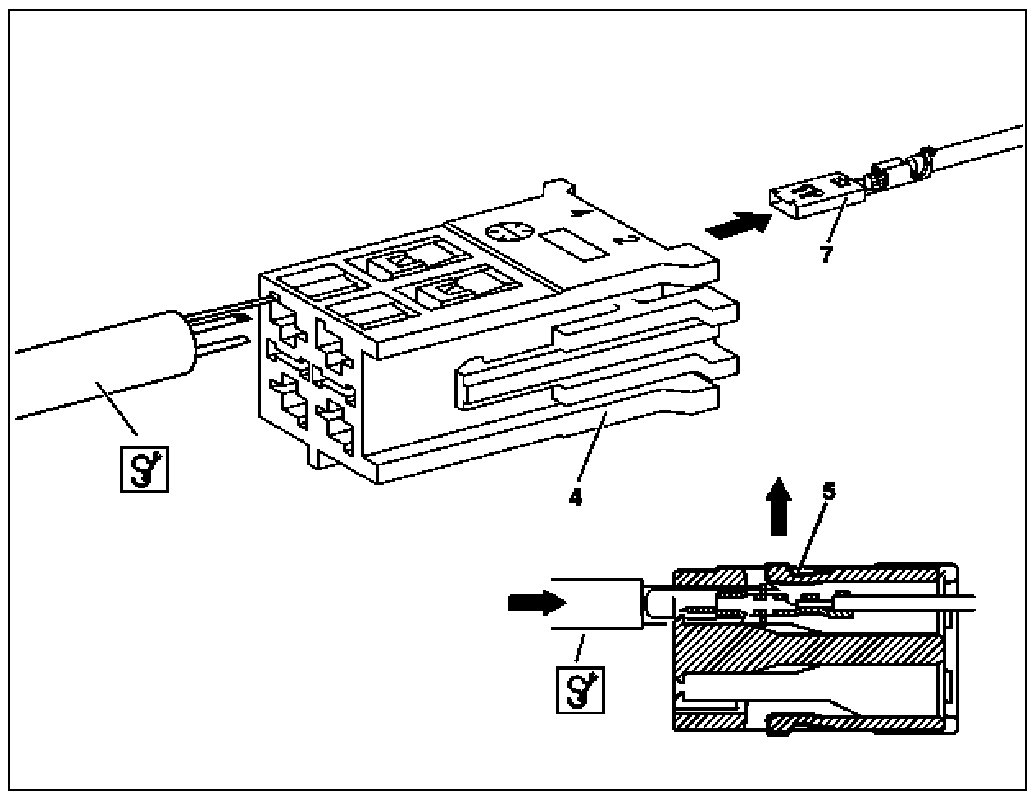

1 Insert blade holder with clamping pliers and SLK 2.8 - 97 blade from front side into contact cavity of coupling (4).
Both spring shackles on the female contact (7) are compressed and, simultaneously, the locking tab (5) on the coupling (4) is lifted.
2 A slight tug on the corresponding cable will remove the female contact (7) from the coupling.
Rocking the female contact back and forth making use of the full housing tolerance may help to unpin the contact.
