Home >> Smart >> 2010 >> ForTwo Cabrio (451.431) L3-1.0L (132.910) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Oil Pan, Engine

Oil Pan, Engine

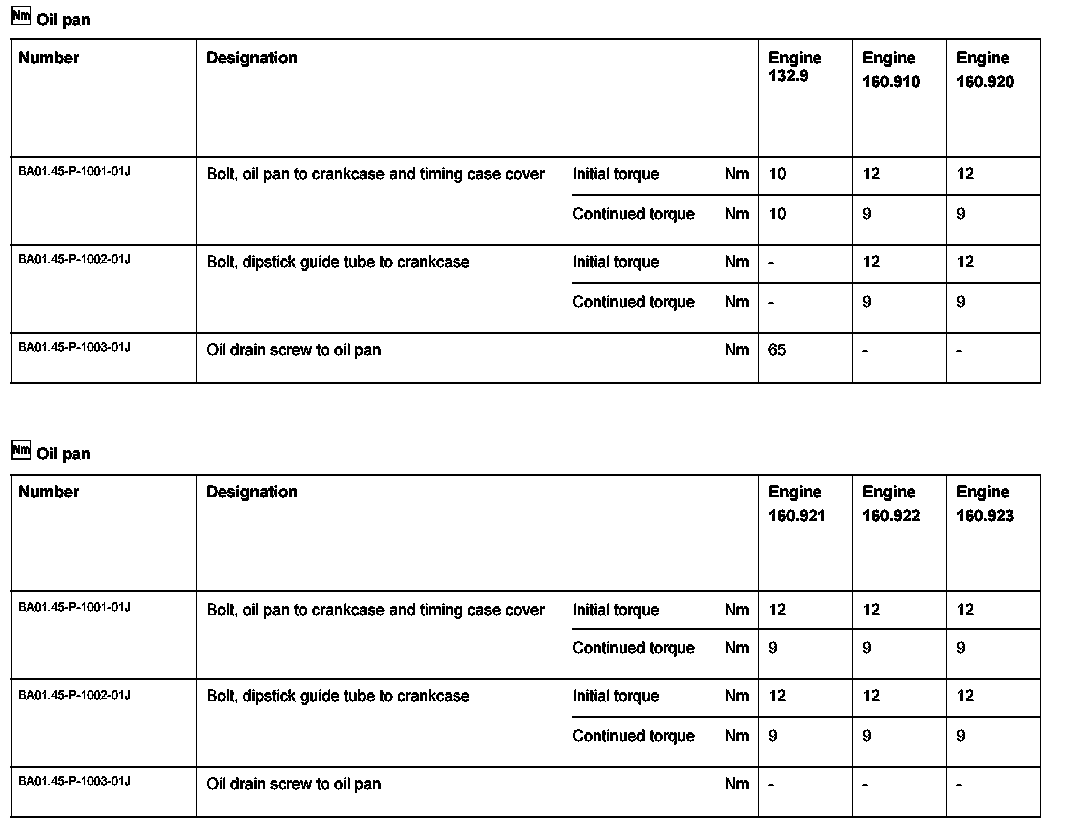

BA01.45-P-1000-01J Oil Pan
