GF91.60-P-4038MCU Front passenger airbag, component description

GF91.60-P-4038MCU Front Passenger Airbag, Component Description

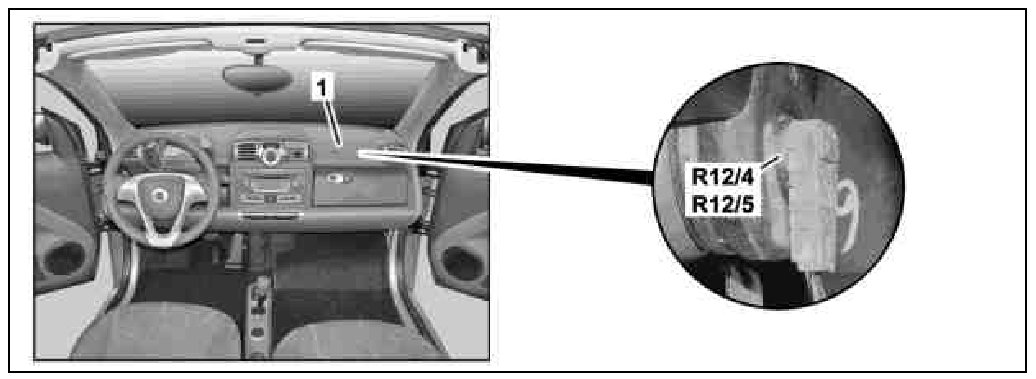

1 Front passenger airbag unit
R12/4 Front passenger airbag squib 1
R12/5 Passenger airbag squib 2

Location
The airbag unit is located in the dashboard on the passenger side.

Task
The front passenger is protected from injury in the event of a frontal impact by the airbag unit.

The two-stage airbag unit is deployed by means of squib ignition by the restraint systems control unit (N2/7).
