Crankshaft Position Sensor: Service and Repair

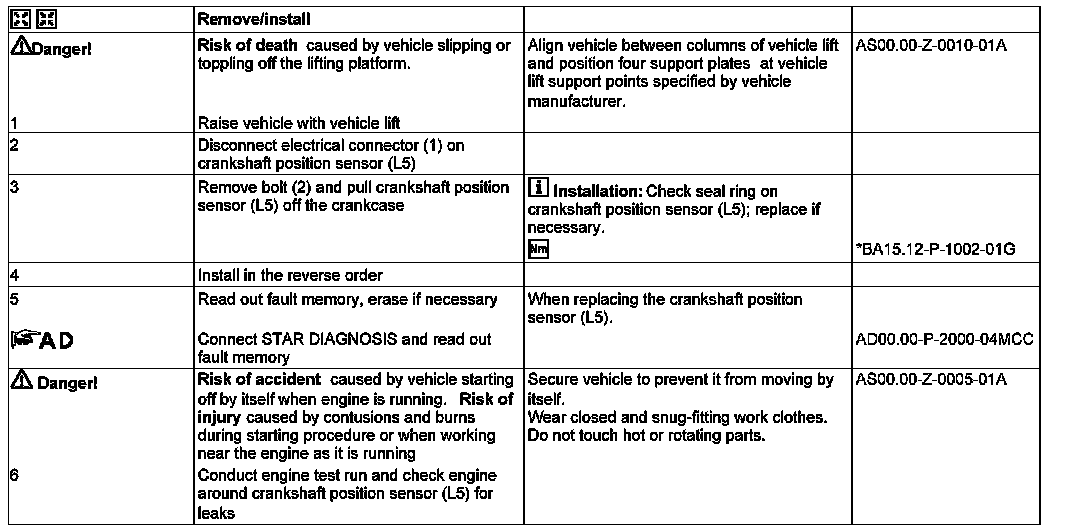

AR15.12-P-2133MCU Remove/Install Crankshaft Position Sensor

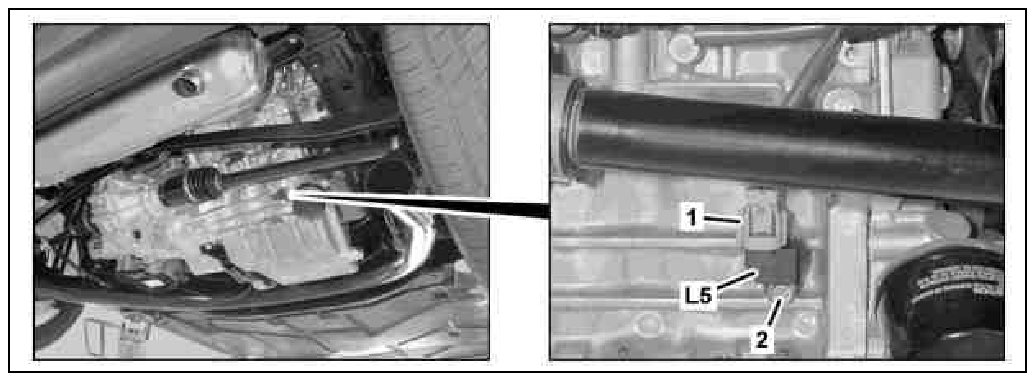

1 Electrical connector

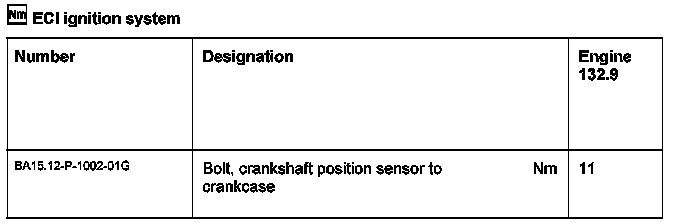

2 Bolt
L5 Crankshaft position sensor
