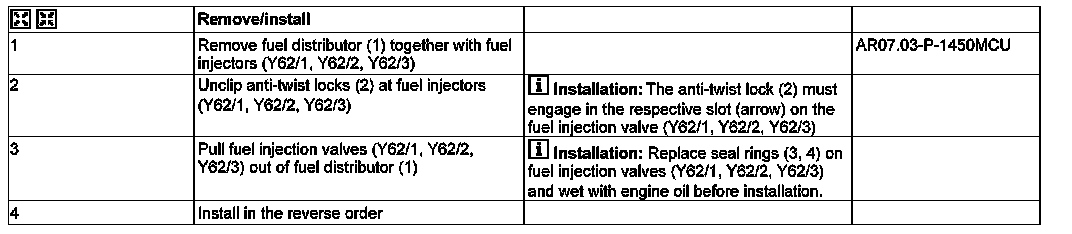

AR07.03-P-6522MCU Remove/Install Injection Valves



AR07.03-P-6522MCU Remove/Install Injection Valves

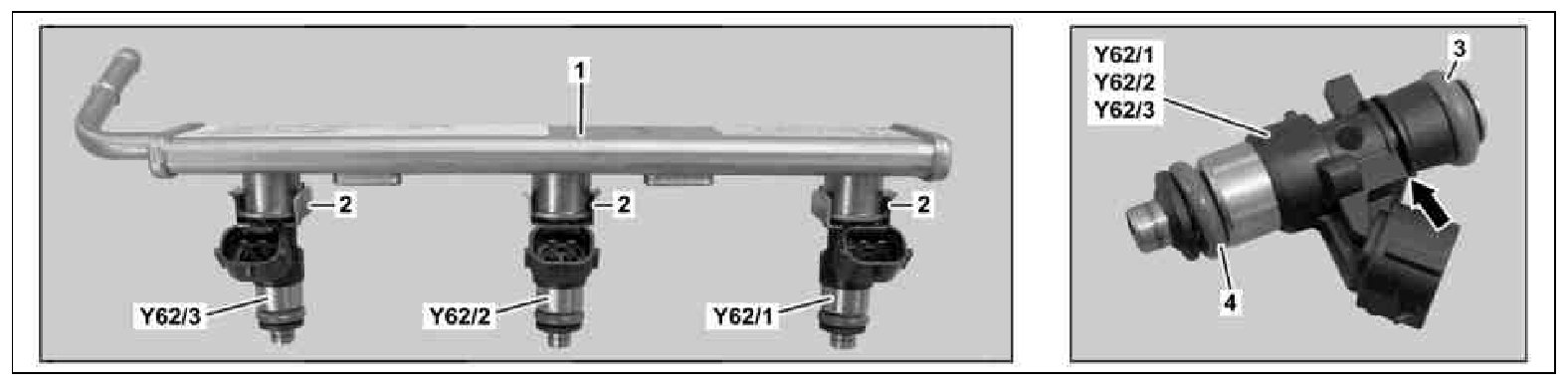

1 Fuel distributor
2 Anti-twist lock
3 Sealing ring
4 Sealing ring
Y62/1 Cylinder 1 fuel injection valve
Y62/2 Cylinder 2 fuel injection valve
Y62/3 Cylinder 3 fuel injection valve
