Positive Crankcase Ventilation Valve: Service and Repair

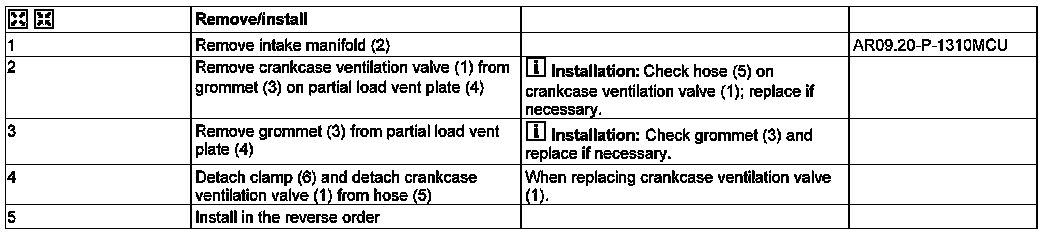

AR01.20-P-0010MCU Remove/Install Crankcase Ventilation Valve (Partial Load)

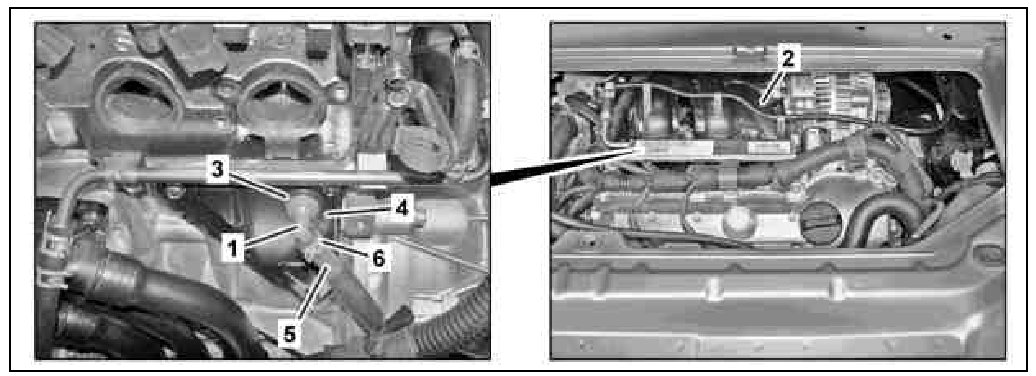

1 Crankcase ventilation valve
2 Intake manifold
3 Grommet
4 Partial load venting plate
5 Hose
6 Hose clamp
