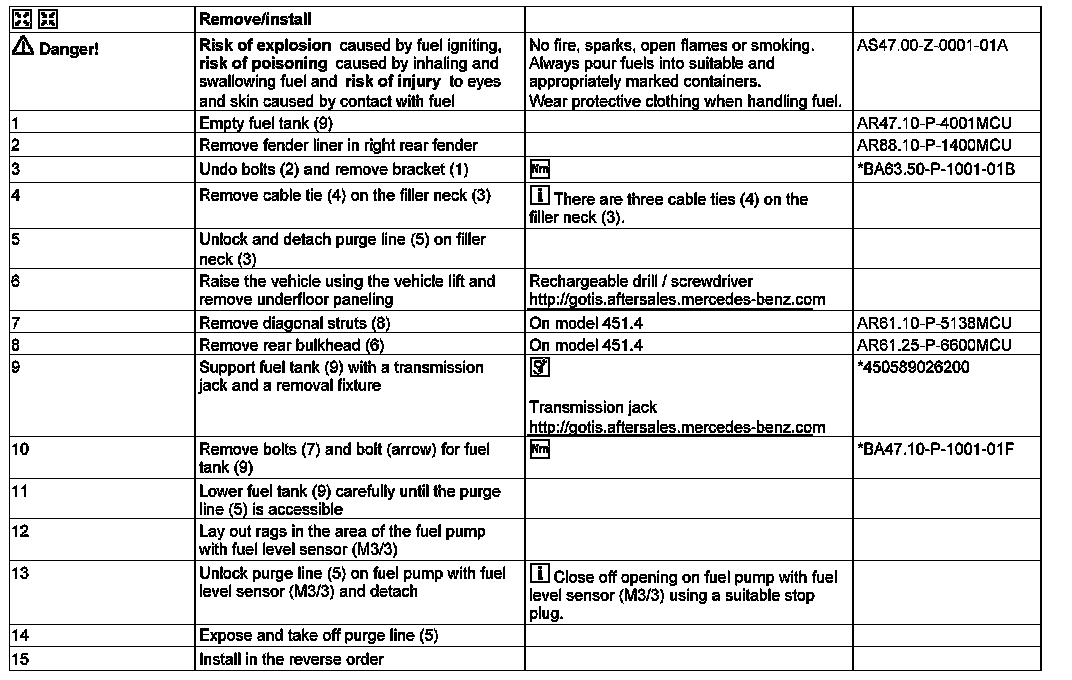

AR47.30-P-8230MCV Remove/Install Purge Line

AR47.30-P-8230MCV Remove/Install Purge Line
- on filler neck

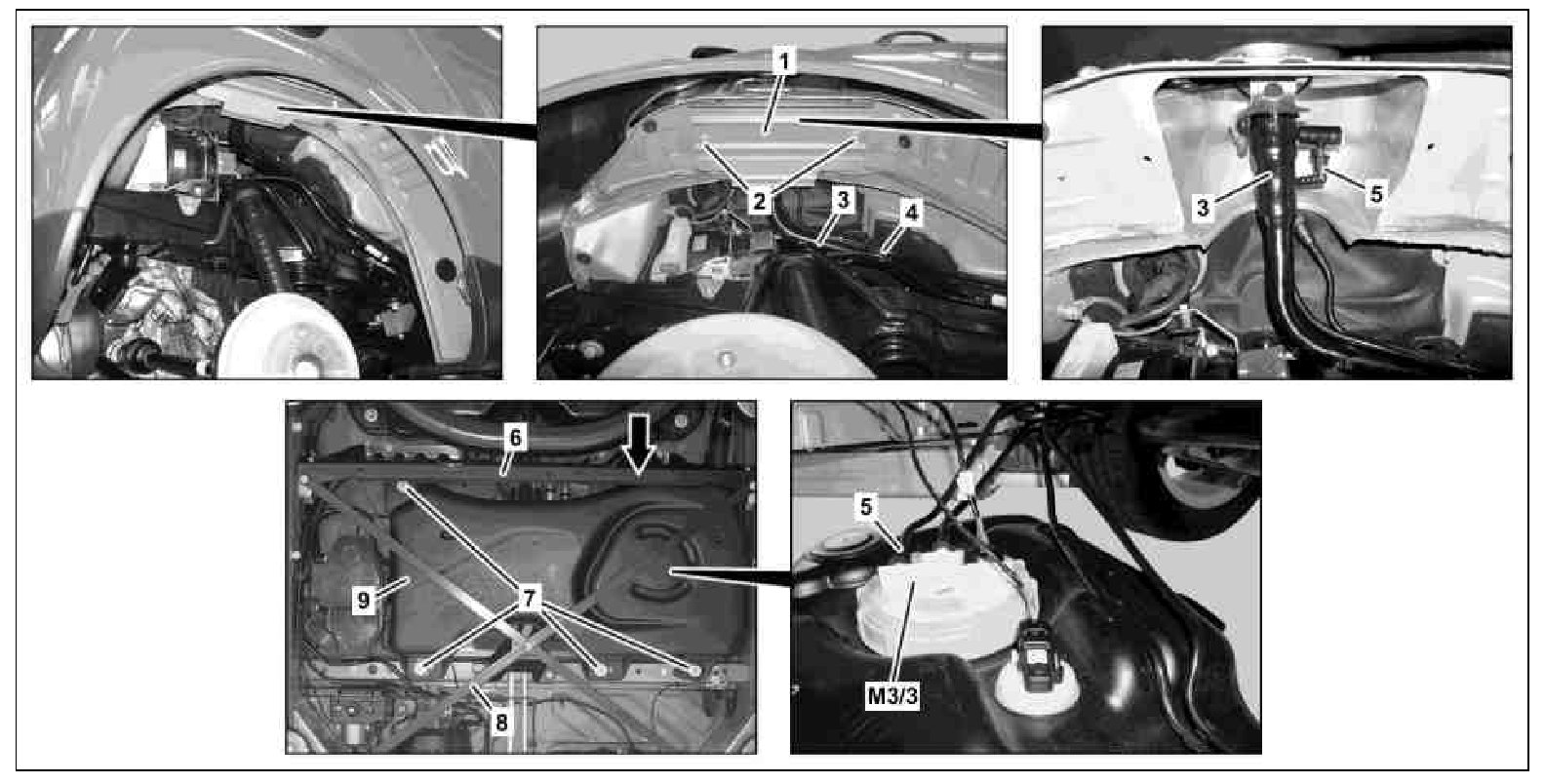

1 Bracket
2 Bolts
3 Filler neck
4 Cable tie
5 Purge line

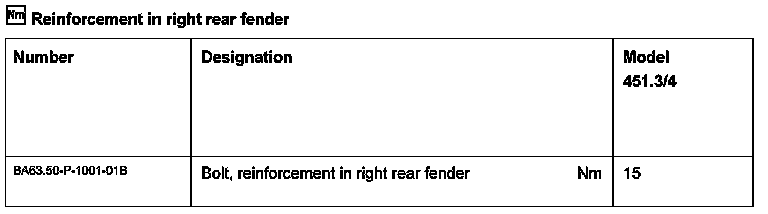

6 Rear bulkhead (for model 451.4)
7 Bolts
8 Diagonal strut (for model 451.4)

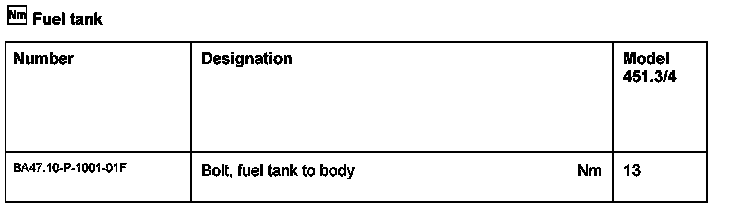

9 Fuel tank
M3/3 Fuel pump with fuel tank sensor






















450 589 02 62 00, Removal assembly
