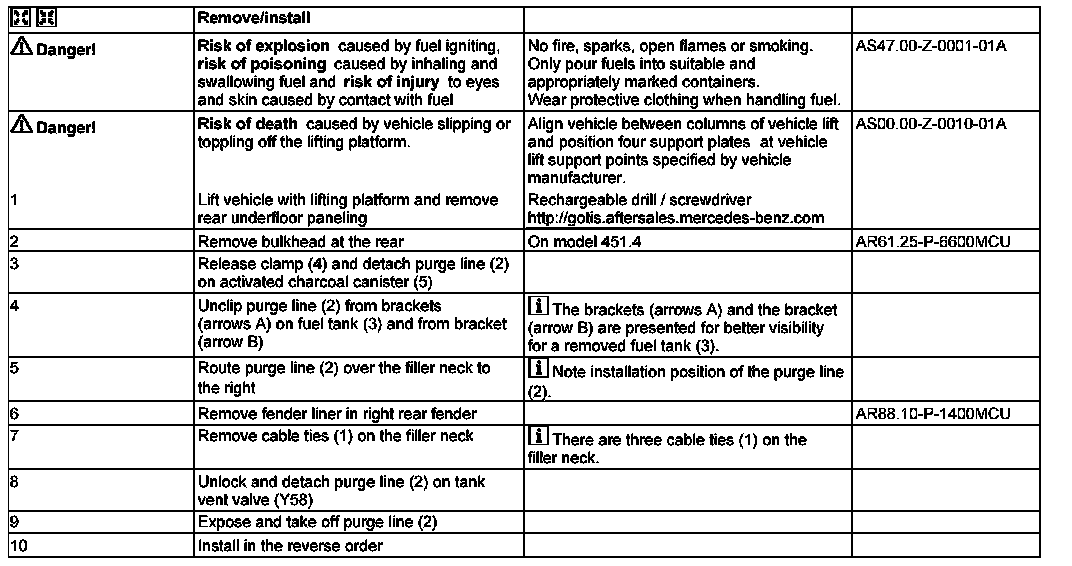

AR47.30-P-8230MCU Remove/Install Purge Line

AR47.30-P-8230MCU Remove/Install Purge Line

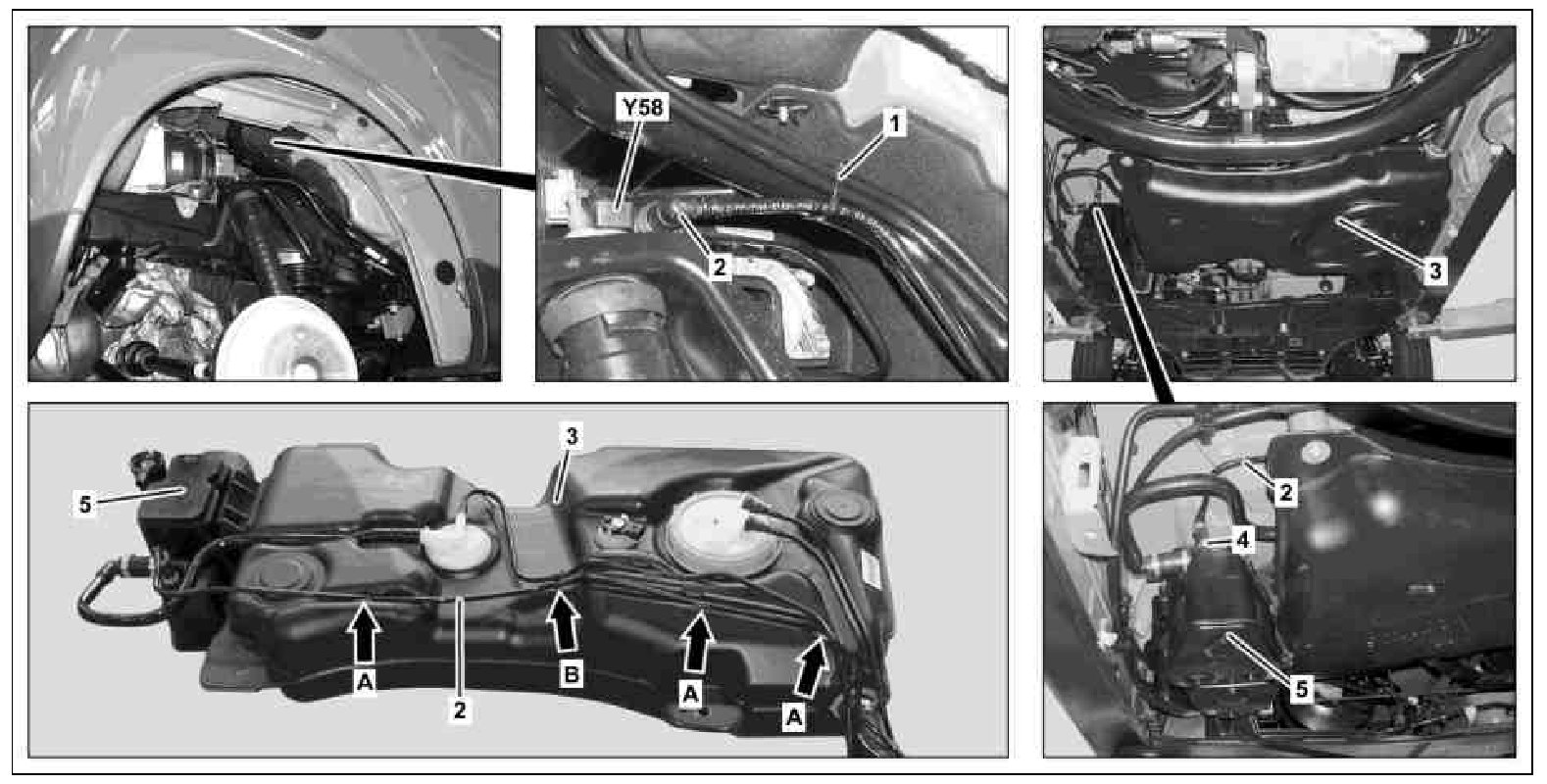

- on tank vent valve







1 Cable tie
2 Purge line
3 Fuel tank
4 Hose clamp
5 Activated charcoal canister
Y58 Fuel tank vent valve
