Air Injection Pump: Service and Repair

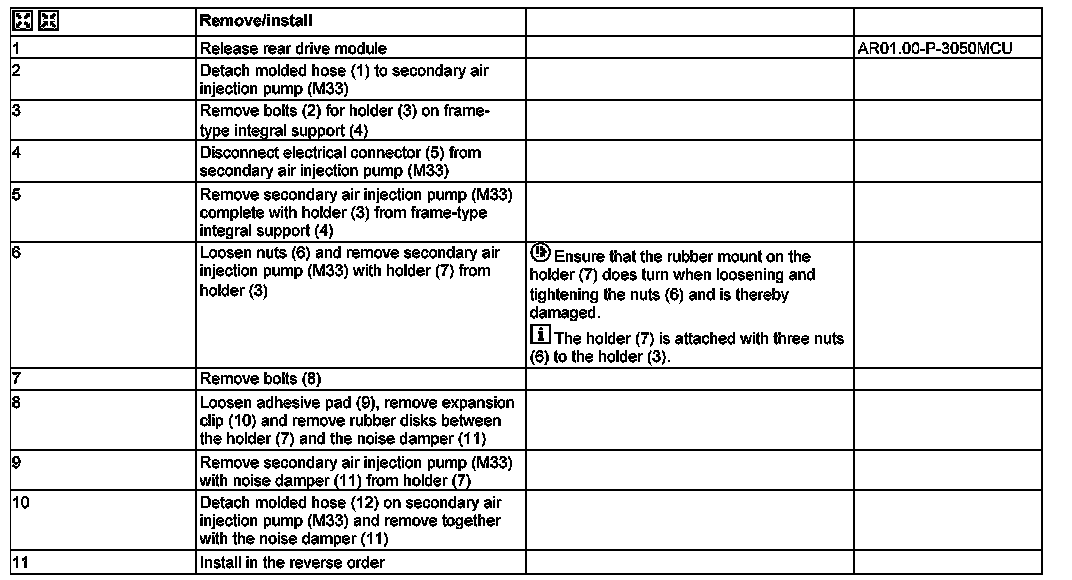

AR14.30-P-8000MCU Remove/Install Secondary Air Injection Pump

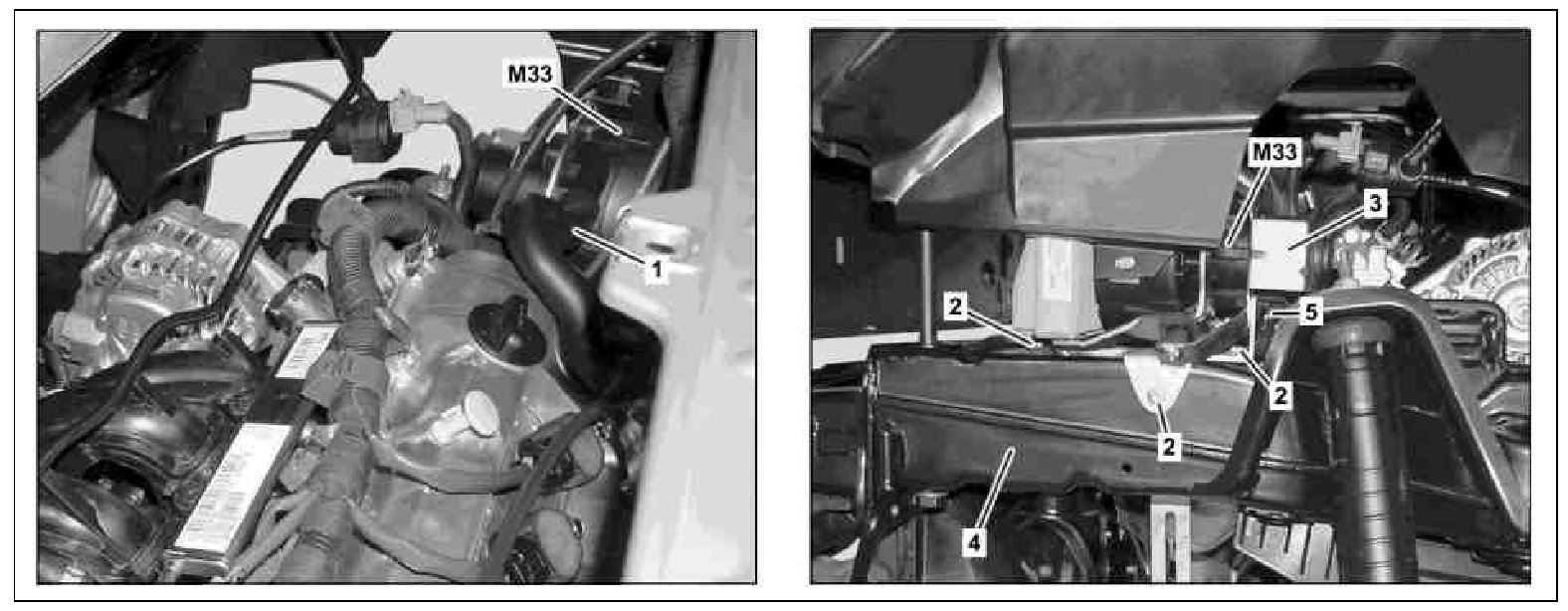

1 Shaped hose
2 Bolt
3 Bracket
4 Frame-type integral support
5 Electrical connector
M33 Secondary air injection pump

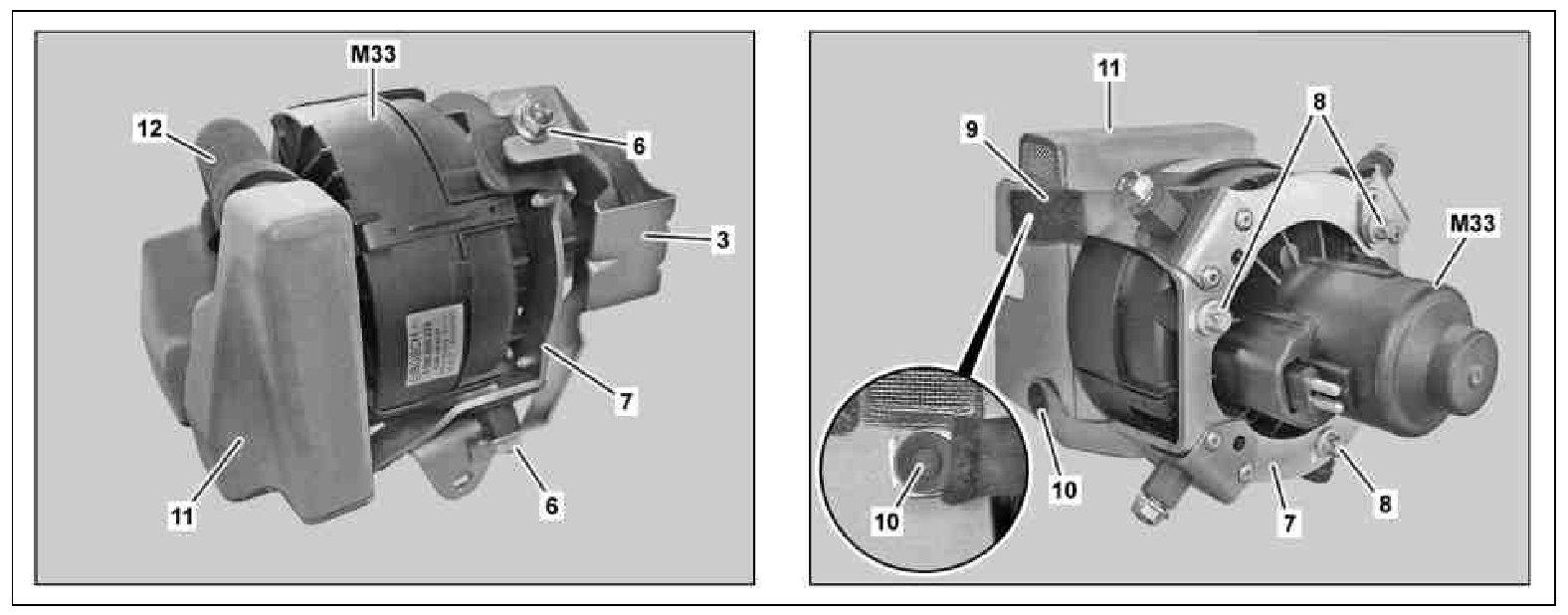

3 Bracket
6 Nut
7 Bracket
8 Bolts
9 Adhesive pad
10 Expansion clip
11 Noise insulation
12 Shaped hose
M33 Secondary air injection pump
