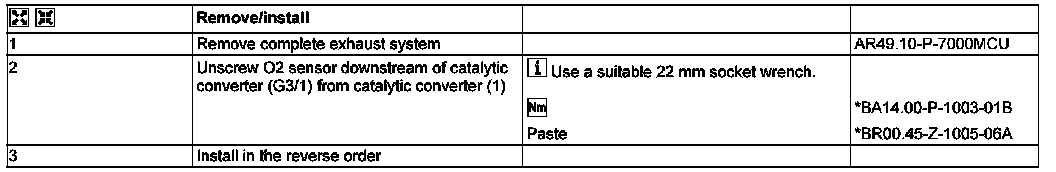

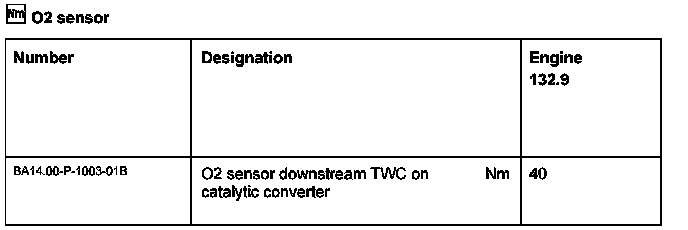

AR07.04-P-0080MCU Remove/Install O2 Sensor



AR07.04-P-0080MCU Remove/Install O2 Sensor

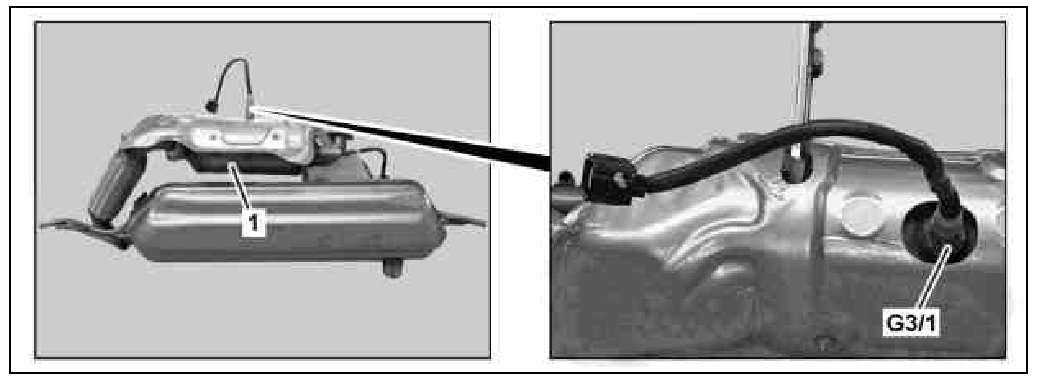

- O2 sensor downstream of TWC







1 Catalytic converter
G3/1 O2 sensor downstream from TWC
