Electronic Throttle Actuator: Description and Operation

GF30.20-P-2020MCC Component Description For the Throttle Valve Actuator

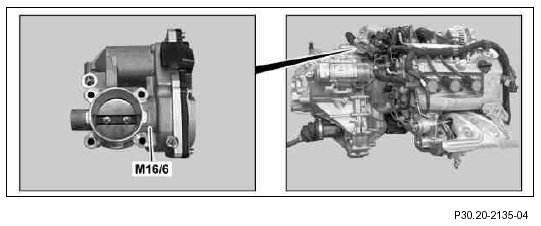

M16/6 Throttle valve actuator

Location
The throttle valve actuator is located on the intake manifold.

Task
The position of the throttle valve and thus the air mass stream is controlled via the throttle valve actuator.
It is actuated by the map-controlled via the ME-SFI [ME] control unit (N3/10).
