Coolant Temperature Sensor/Switch (For Computer): Service and Repair

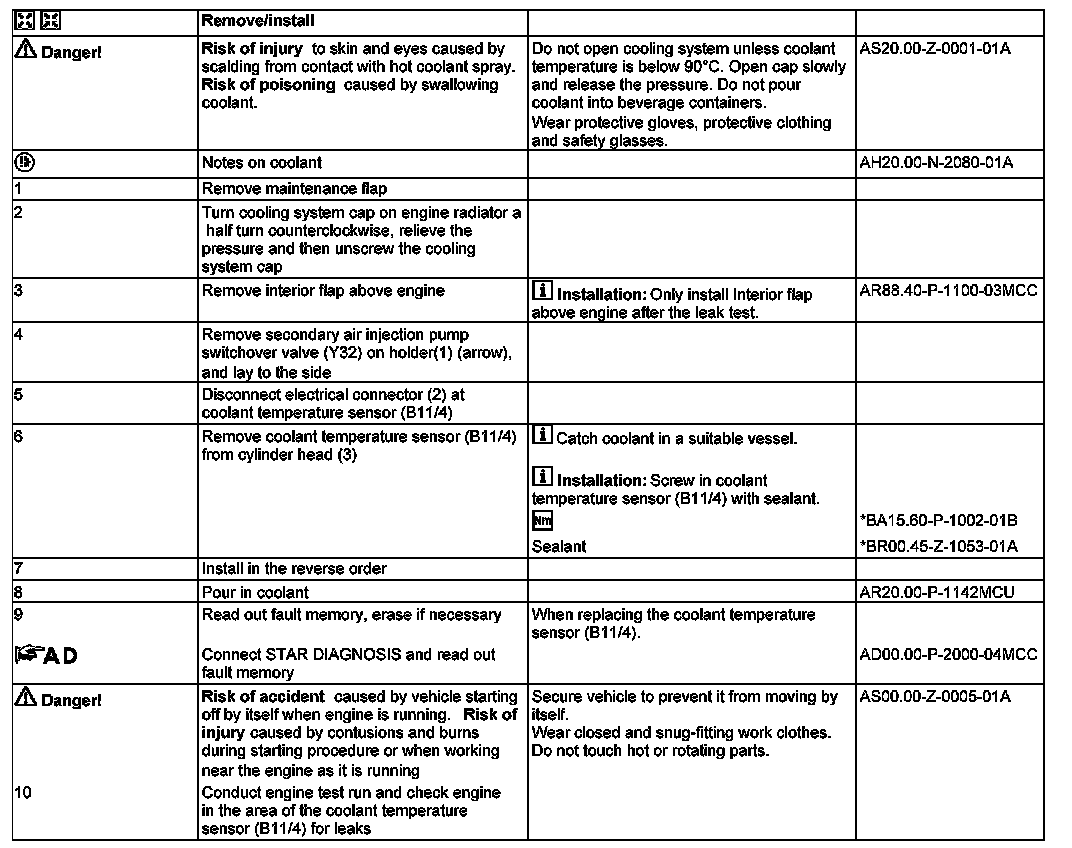

AR15.60-P-2711MCU Remove/Install Coolant Temperature Sensor

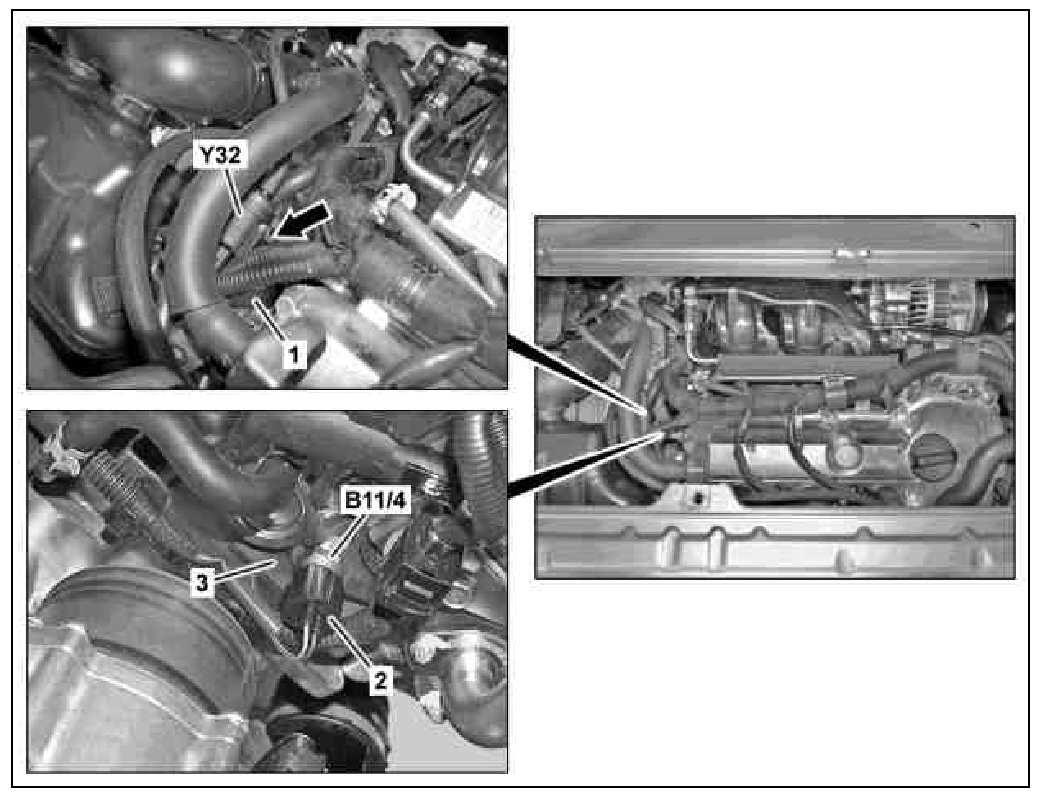

1 Bracket
2 Electrical connector
3 Cylinder head
B11/4 Coolant temperature sensor
Y32 Secondary air injection pump switchover valve
