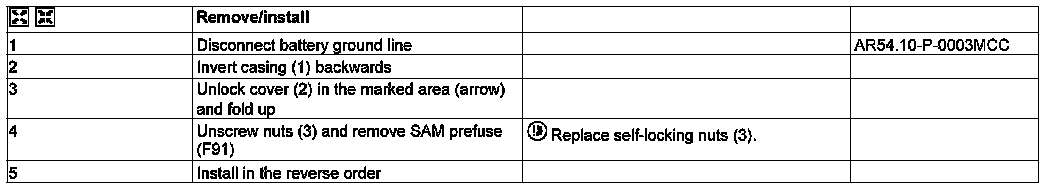

AR54.15-P-0051MCV Remove/Install Main Fuse of Positive Line
AR54.15-P-0051MCV Remove/Install Main Fuse Of Positive Line

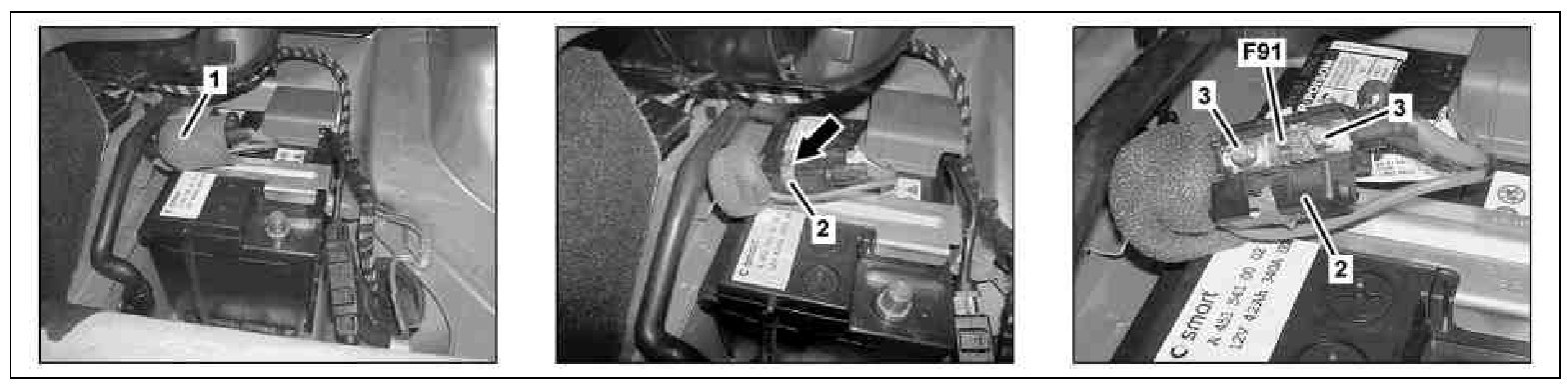

Main fuse of SAM [signal acquisition and actuation module] control unit
1 Casing
2 Cover
3 Nut
F91 SAM prefuse
AR54.15-P-0051MCV Remove/Install Main Fuse Of Positive Line
Main fuse of SAM [signal acquisition and actuation module] control unit
1 Casing
2 Cover
3 Nut
F91 SAM prefuse
