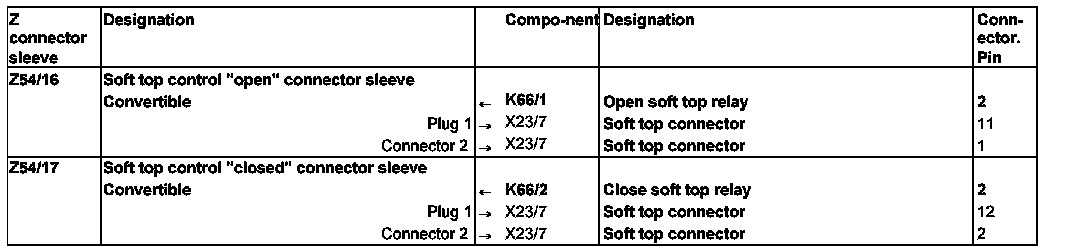

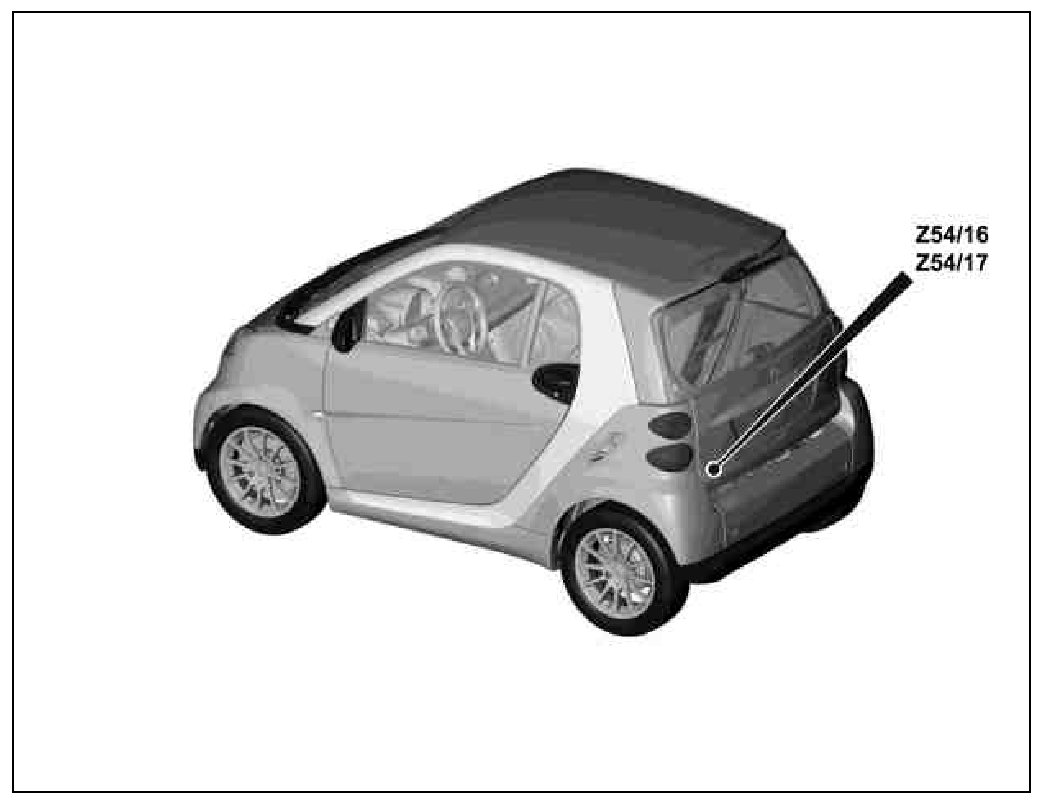

GF00.19-P-3000-06MCU Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk left



GF00.19-P-3000-06MCU Location And Assignment Of Z Connector Sleeves (Connectors And Wiring Harness) - Trunk Left
