AN82.10-P-0100-04MCC Retrofit Daytime Running Lights Headlamp In CBS Front End

AN82.10-P-0100-04MCC Retrofit Daytime Running Lights Headlamp In CBS Front End







Installation of the daytime running lights headlamp unit (7) is shown on the left side of the vehicle. Installation on the right side of vehicle is performed in the same manner.

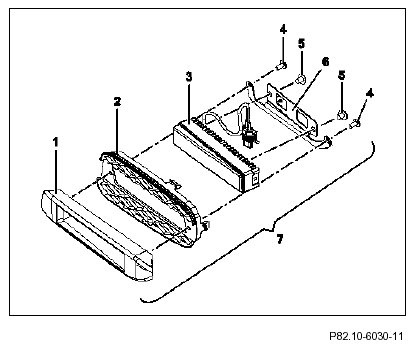

1. Tighten bracket (6) with screws/bolts (5) at daytime running lights headlamp (3).
2. Position installation frame (1) at trim (2).
3. Insert daytime running lights headlamp (3) into trim (2).
4. Tighten installation frame (1) with screws/bolts (4).

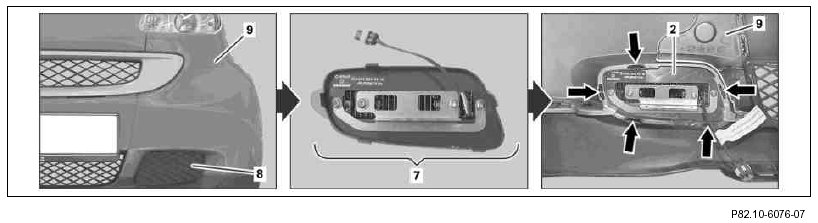

5. Unclip trim (8) from CBS front end (9).
6. Clip daytime running lights headlamp unit (7) into CBS front end (9).
Ensure that catch hooks (arrows) of trim (2) are seated correctly in CBS front end (9).
