AN82.10-P-0100-02MCC Retrofit Daytime Running Lights Headlamp Control Unit

AN82.10-P-0100-02MCC Retrofit Daytime Running Lights Headlamp Control Unit

The following steps are shown on the left side of the vehicle. Installation on the right side of vehicle is performed in the same manner.

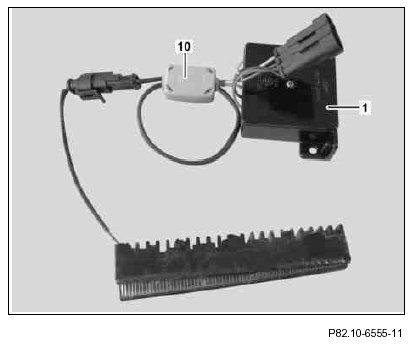

1. Before installing the daytime running lights control unit (1) check whether the ferrite core (10) is positioned, as shown, on the wiring harness. If necessary, align the ferrite core (10) again.

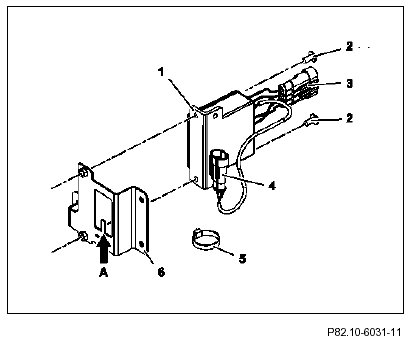

2. Tighten daytime running lights control unit (1) with screws/bolts (2) at bracket (6).
3. Temporarily fasten connector (4) using cable tie (5) at front side of bracket (6) at peg (arrow A).

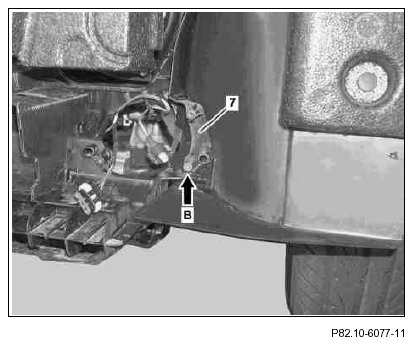

4. Drill out mounting dome (arrow B) of front module (7) at center using a drill bit (diameter 2.0 mm).
Cordless drill/driver

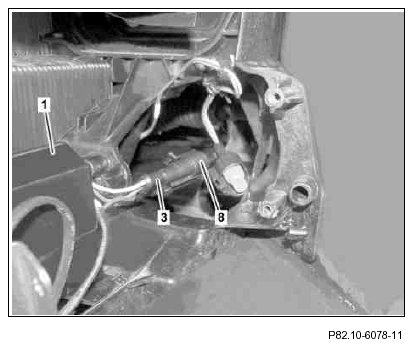

5. Connect connector (3) of daytime running lights control unit (1) to coupling (8) of front wiring harness.

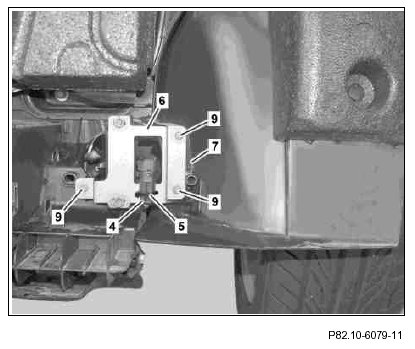

6. Tighten bracket (6) with screws/bolts (9) at front module (7).
7. Align connector (4), as shown, and tighten cable tie (5).
8. Shorten excess length of cable tie (5).
