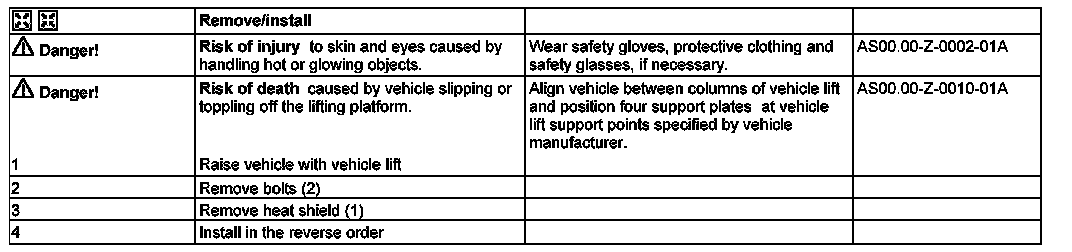

AR49.10-P-6945MCU Remove/Install Heat Shield of Exhaust System
AR49.10-P-6945MCU Remove/Install Heat Shield of Exhaust System
AR49.10-P-6945MCU Remove/Install
Heat Shield
Of
Exhaust System

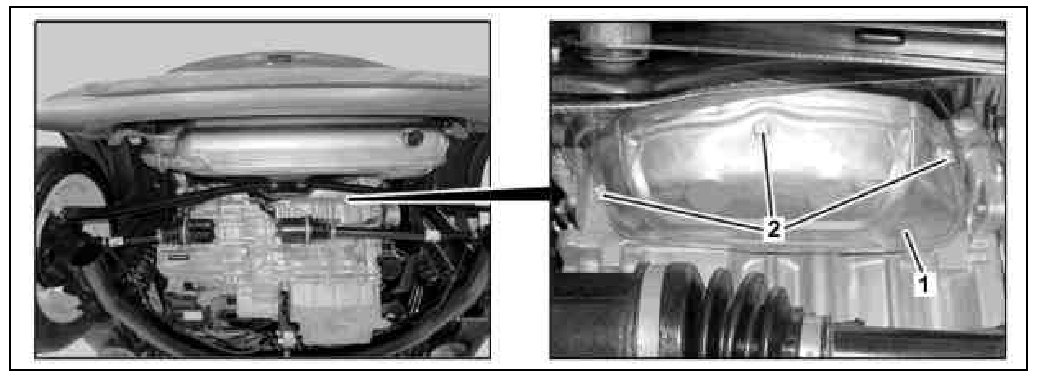

1
Heat shield
2
Bolts
