Timing Chain Tensioner: Service and Repair

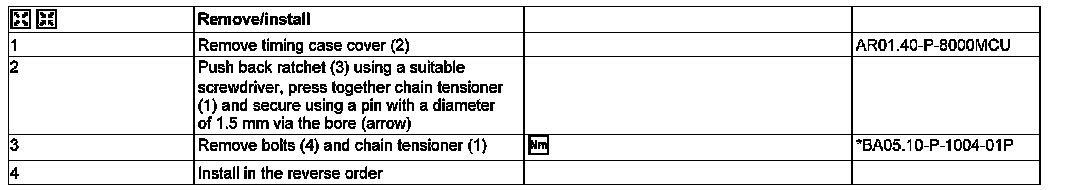

AR05.10-P-7800MCU Remove/Install Chain Tensioner







1 Chain tensioner
2 Timing case cover
3 Ratchet
4 Bolts
