AR05.30-P-3512MCC Replace Valve Stem Seals With Cylinder Head Installed

AR05.30-P-3512MCC Replace Valve Stem Seals With Cylinder Head Installed

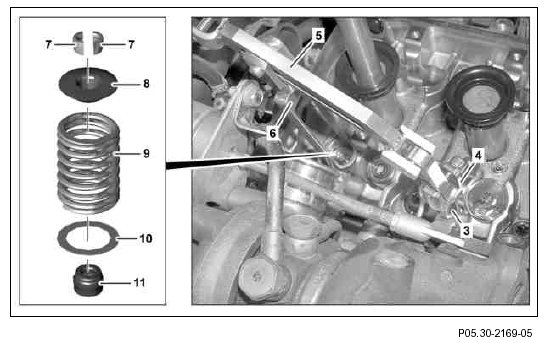

1 Valve tappet
2 Adapter







3 Thread extension
4 Counter stay
5 Pressure fork
6 Depressor
7 Valve collet
8 Valve spring retainer (above)
9 Valve spring
10 Valve spring retainer (below)

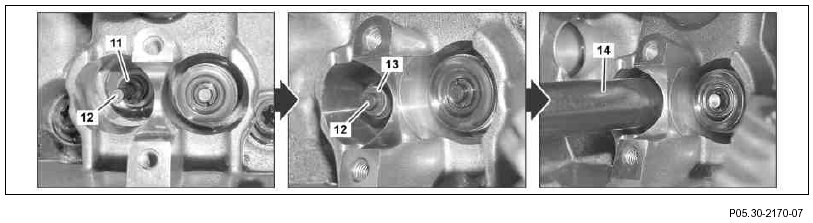

11 Valve stem seal







11 Valve stem seal
12 Valve stem
13 Valve stem seal (new)
14 Drift











132 589 00 43 00, Drift







272 589 00 61 00, Depressor







450 589 01 91 00, Adaptation







451 589 01 16 00, Thread extension for retaining fork







451 589 01 40 00, Retaining lock







452 589 01 99 00, Repair tools for valves
