Oil Pressure Sender: Service and Repair

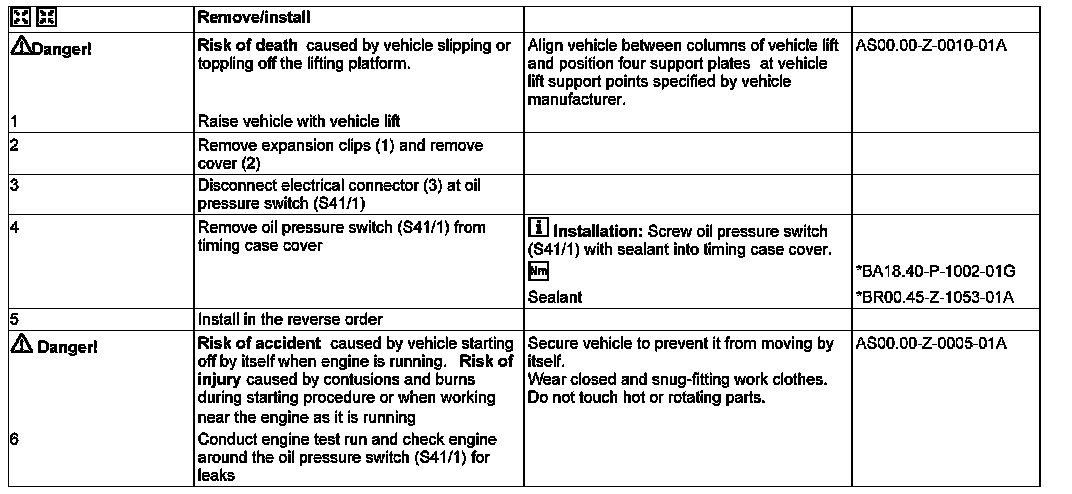

AR18.40-P-4132MCU Remove/Install Oil Pressure Switch

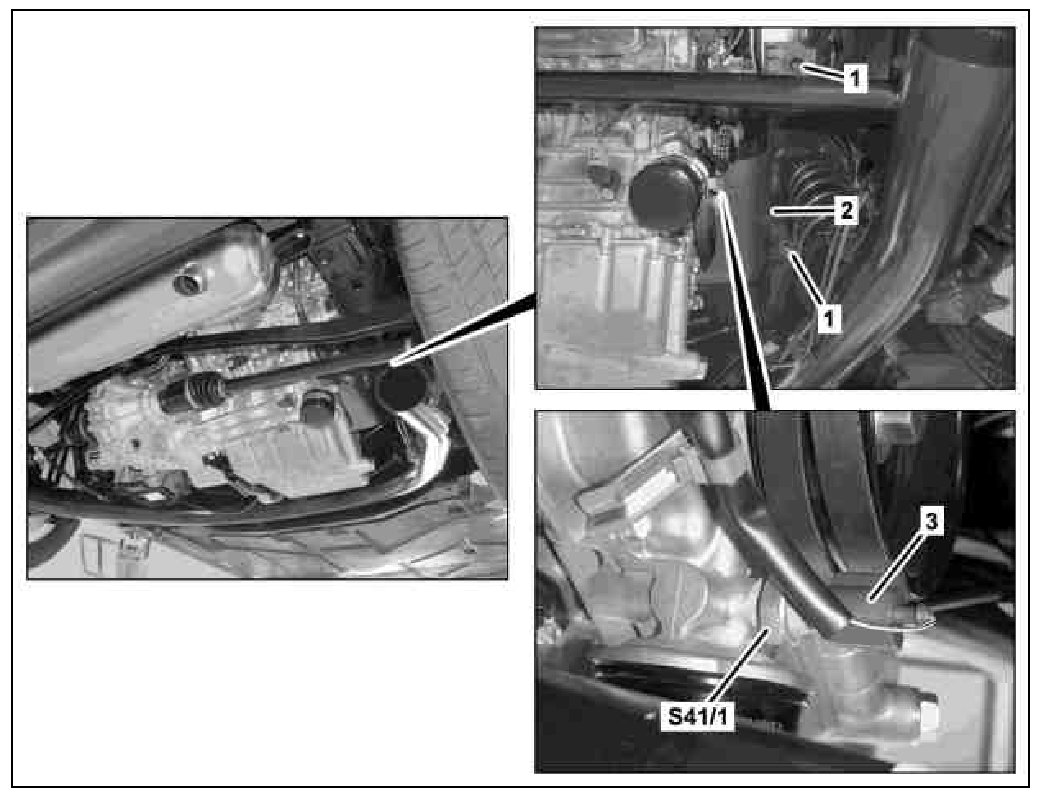

1 Expansion clip
2 Cover
3 Electrical connector
S41/1 Oil pressure switch
