AH01.45-P-0001-01MCC Notes On Sealant Path For Oil Pan

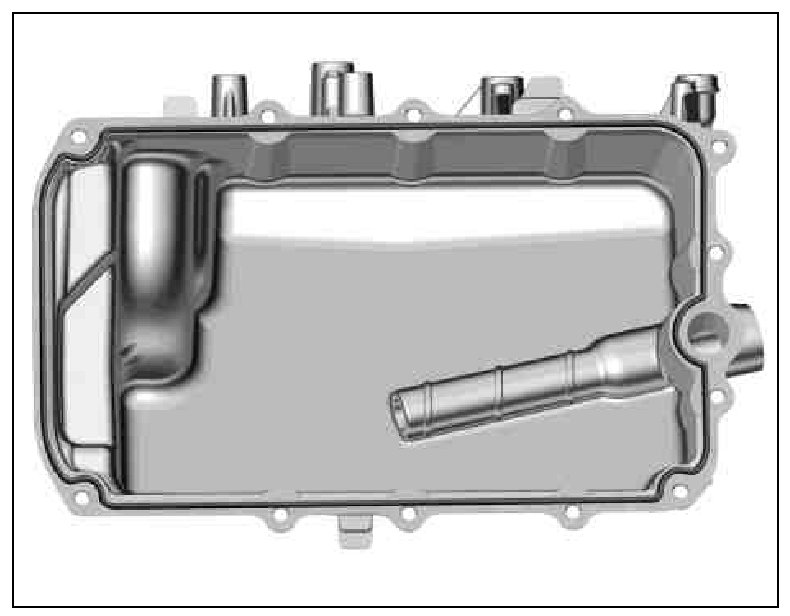

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.5 mm ± 0.5 mm (see picture).

The sealant bead must not be spread. Only the approved sealant may be used.
The oil pan must be fitted within 10 minutes.
