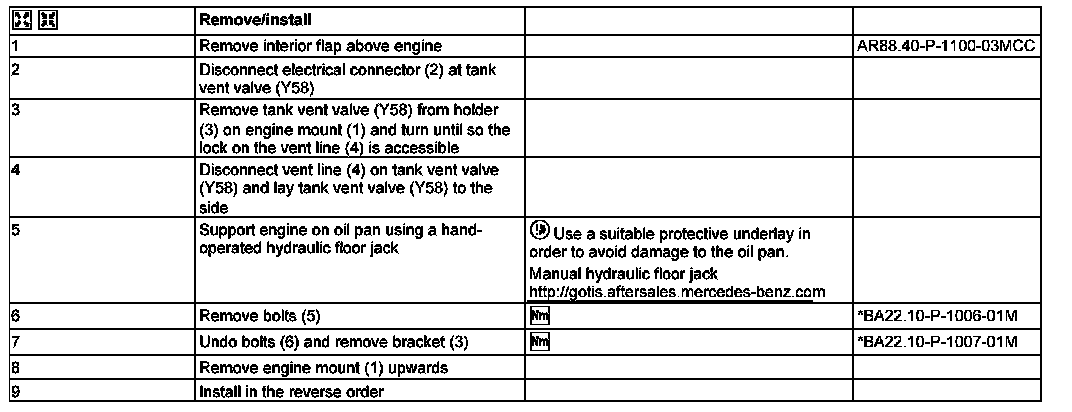

AR22.10-P-1102MCU Remove/Install Right Engine Mount



AR22.10-P-1102MCU Remove/Install Right Engine Mount







1 Engine mount
2 Electrical connector
3 Bracket
4 Vent line
5 Bolts
6 Screw
Y58 Fuel tank vent valve
