Procedures

AR01.20-P-5014-03MCC Bolt Tightening Procedure For Cylinder Head Cover

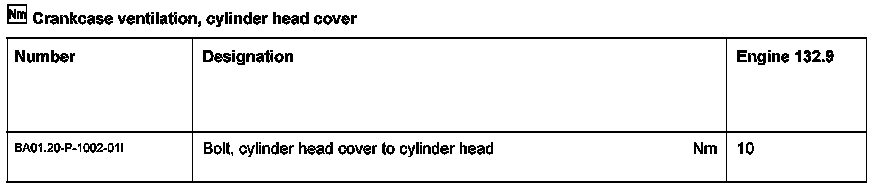

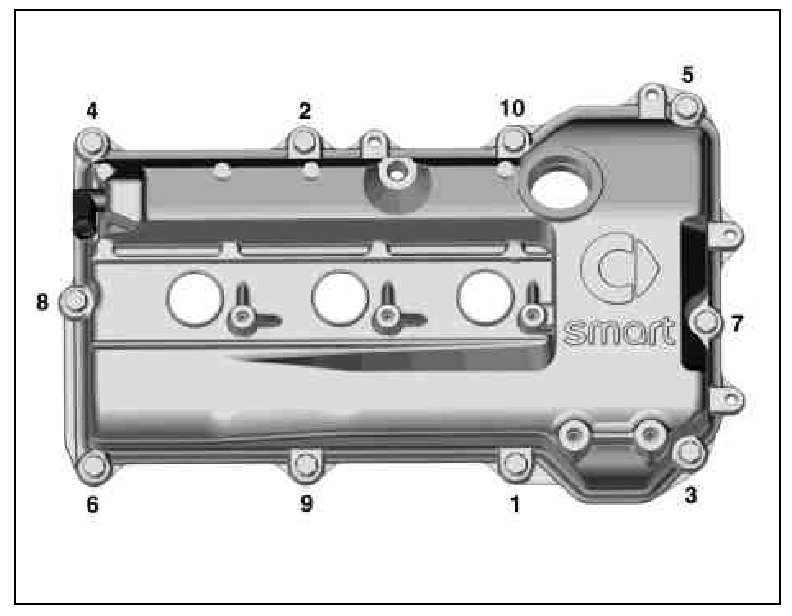

1 Screw in bolts (1 to 10) for cylinder head cover in a number of stages according to the represented sequence all the way and tighten using the prescribed torque.
Loosen bolts for the cylinder head cover in reverse order of the tightening procedure.
