Cylinder Head Assembly: Testing and Inspection

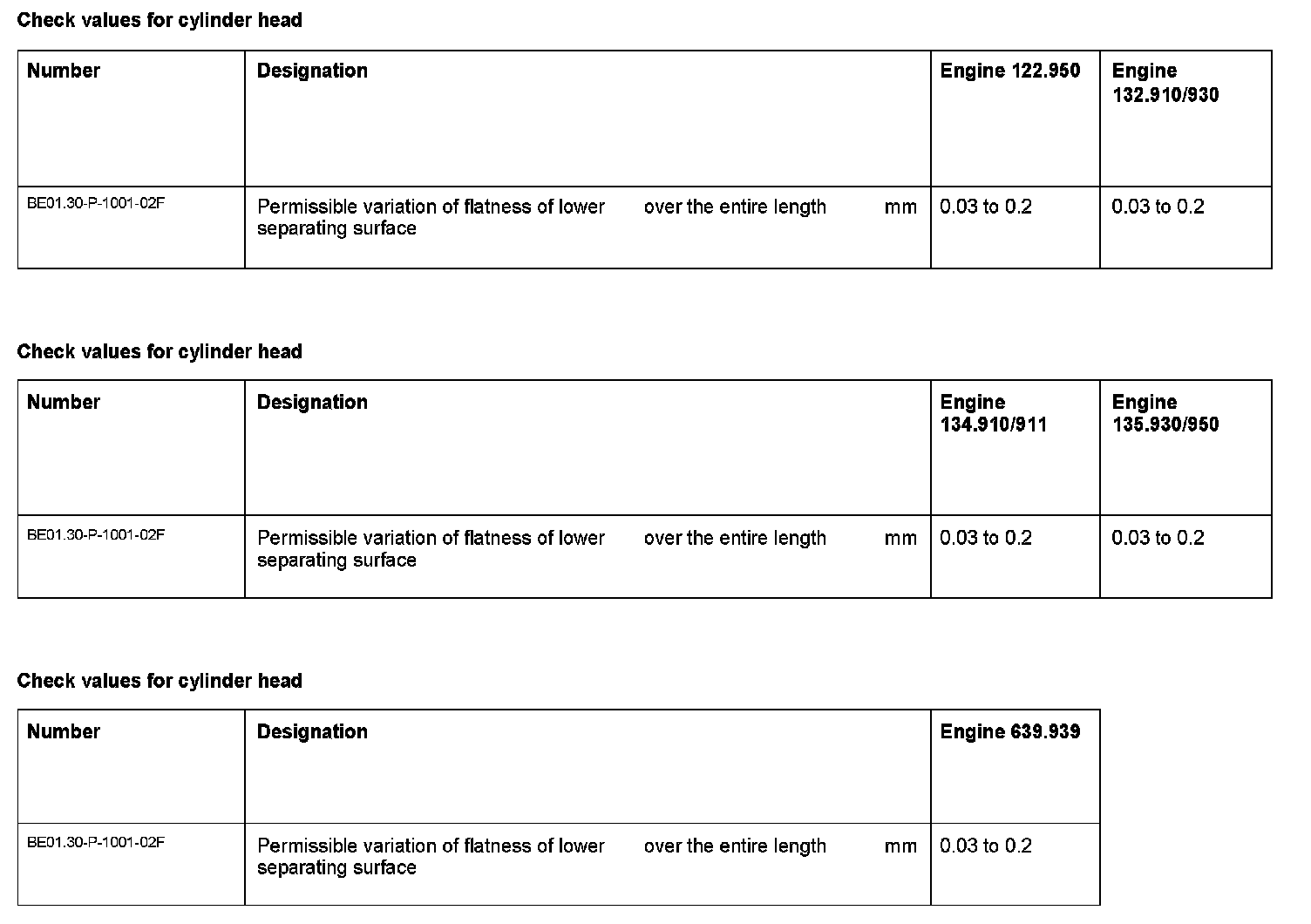

BE01.30-P-1000-02F Check Values For Cylinder Head
- Engines 122, 132, 134, 135, 639
