Side Cover: Service and Repair

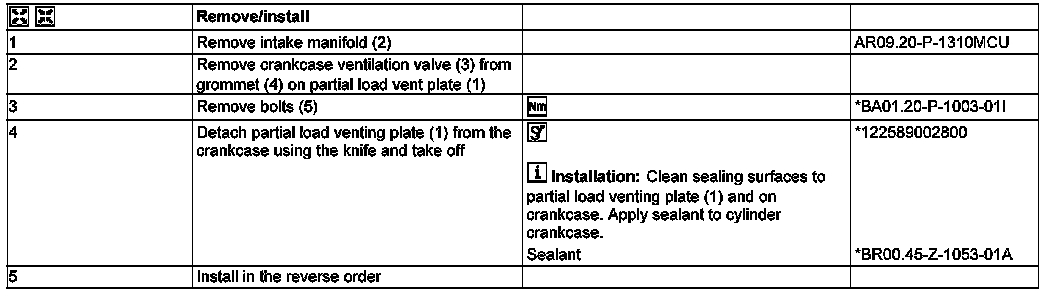

AR01.20-P-0100MCU Remove/Install Cover On Crankcase

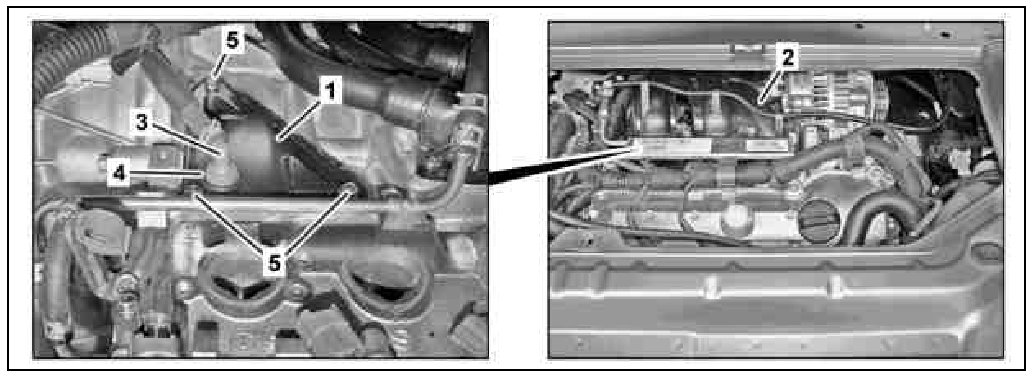

1 Partial load venting plate
2 Intake manifold
3 Crankcase ventilation valve
4 Grommet
5 Bolts

















122 589 00 28 00, Knife
