AH03.10-P-0001-02MCC Assignment of Pistons to Cylinder Bore

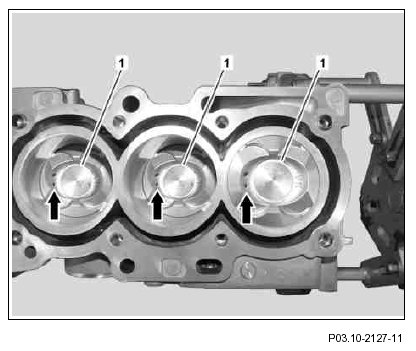

The markings (arrows) on the pistons (1) must point towards the timing case.
