Removal and Replacement

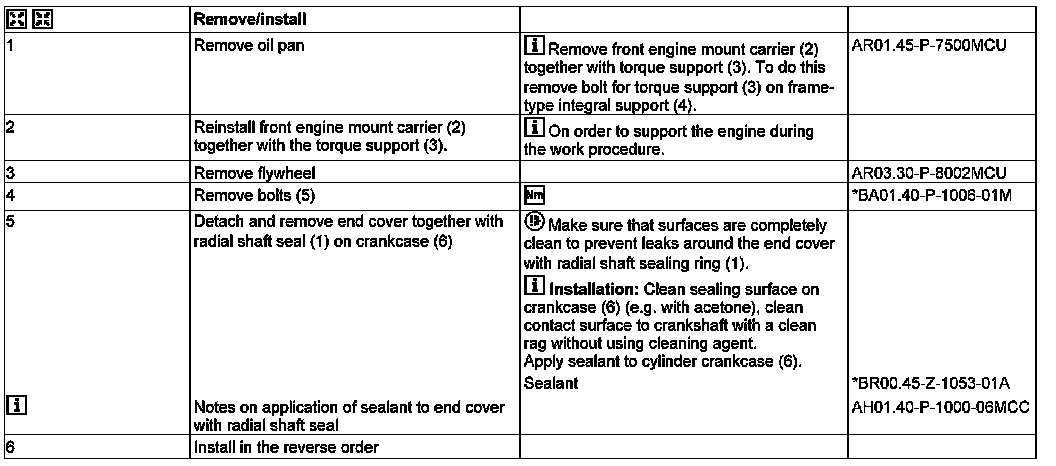

AR01.40-P-8920MCU Remove/Install End Cover Together With Shaft Seal






1 End cover with radial shaft seal
2 Carrier for front engine mount
3 Torque support
4 Frame-type integral support

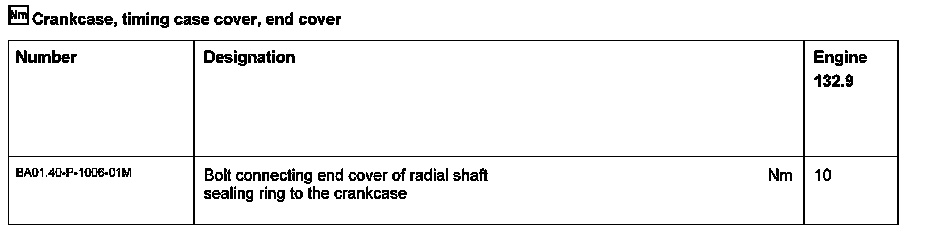

5 Bolts
6 Crankcase
