AH01.40-P-1000-06MCC Notes Application Of Sealant To End Cover With Radial Shaft Seal

Model 451.3/4 with engine 132.9

Application of sealant to crankcase

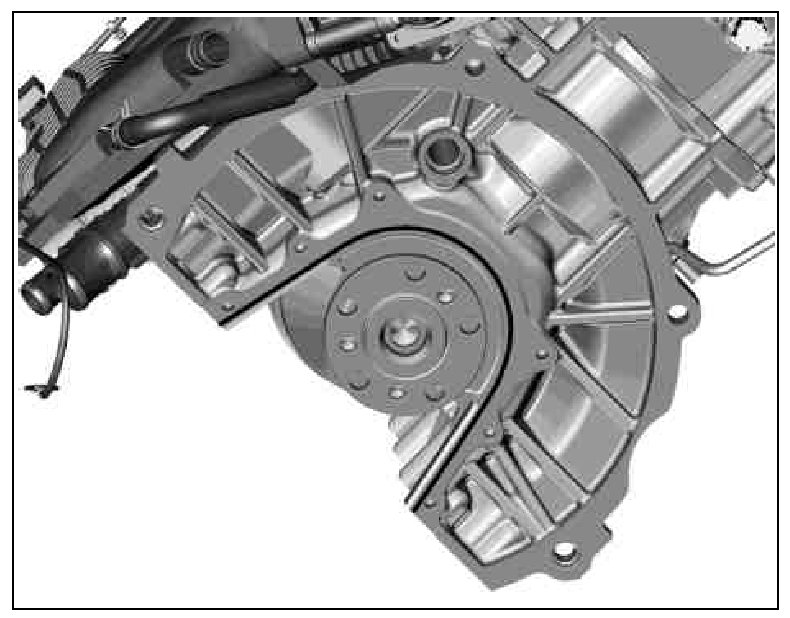

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.5 mm ± 0.5 mm (see picture).

The sealant must be applied within 10 minutes. The sealant bead must not be spread. Only sealant listed in the Repair Products may be used.
