Home >> Smart >> 2010 >> ForTwo Cabrio (451.431) L3-1.0L (132.910) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Water Pump >> Specifications

Water Pump: Specifications

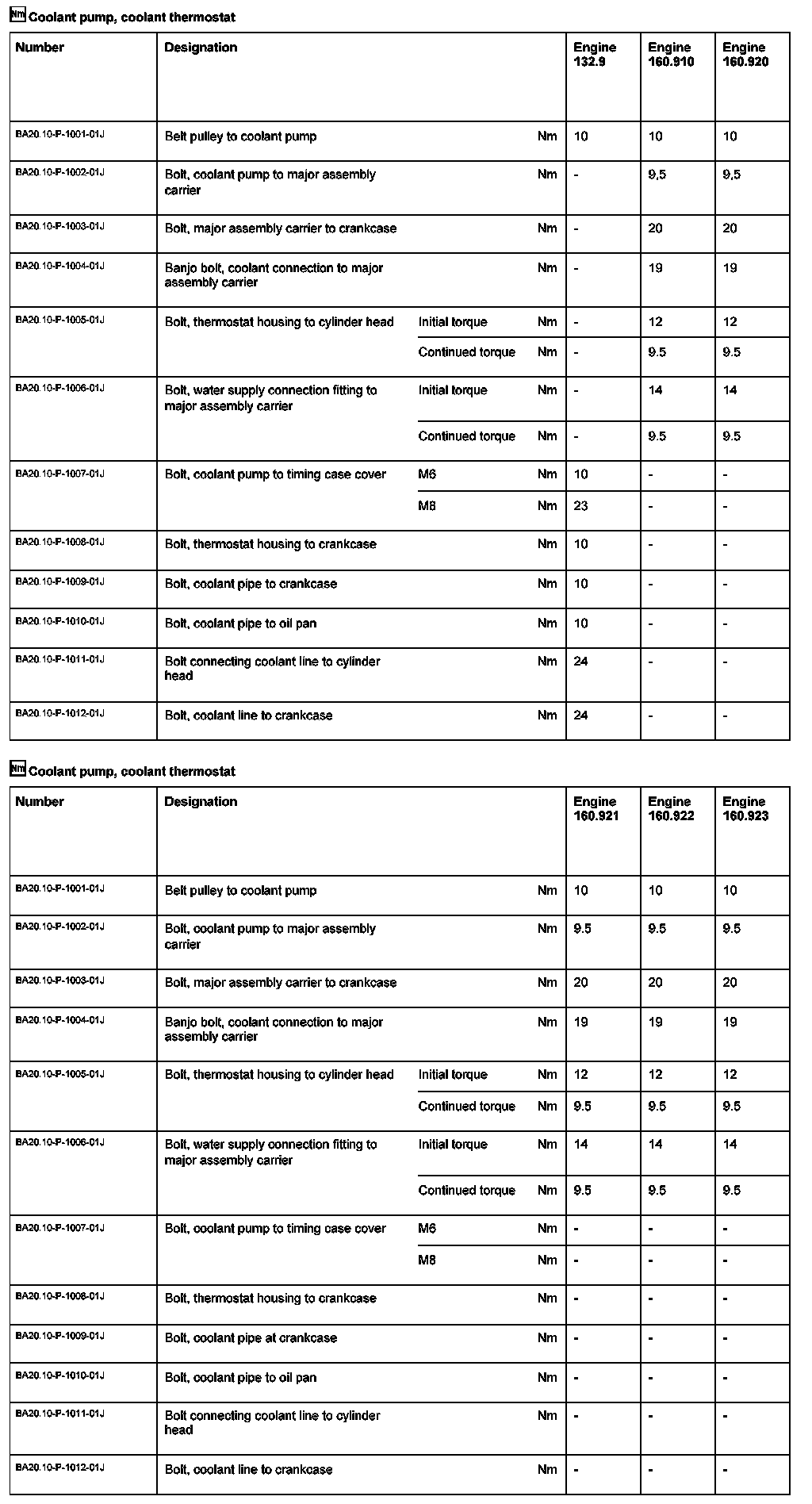

BA20.10-P-1000-01J Coolant Pump, Coolant Thermostat
