Thermostat: Service and Repair

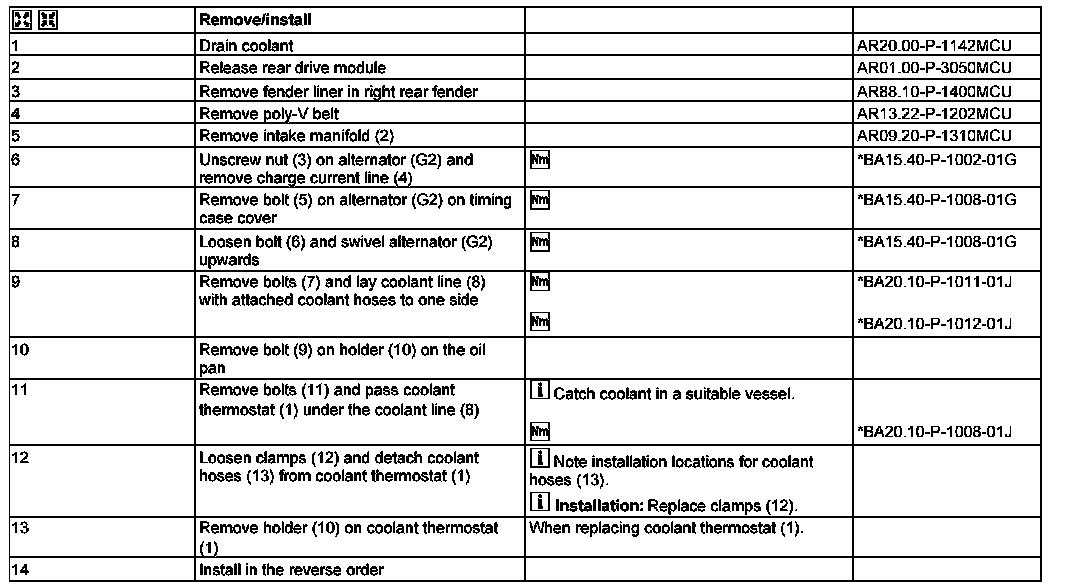

AR20.10-P-2460MCU Remove/Install Coolant Thermostat

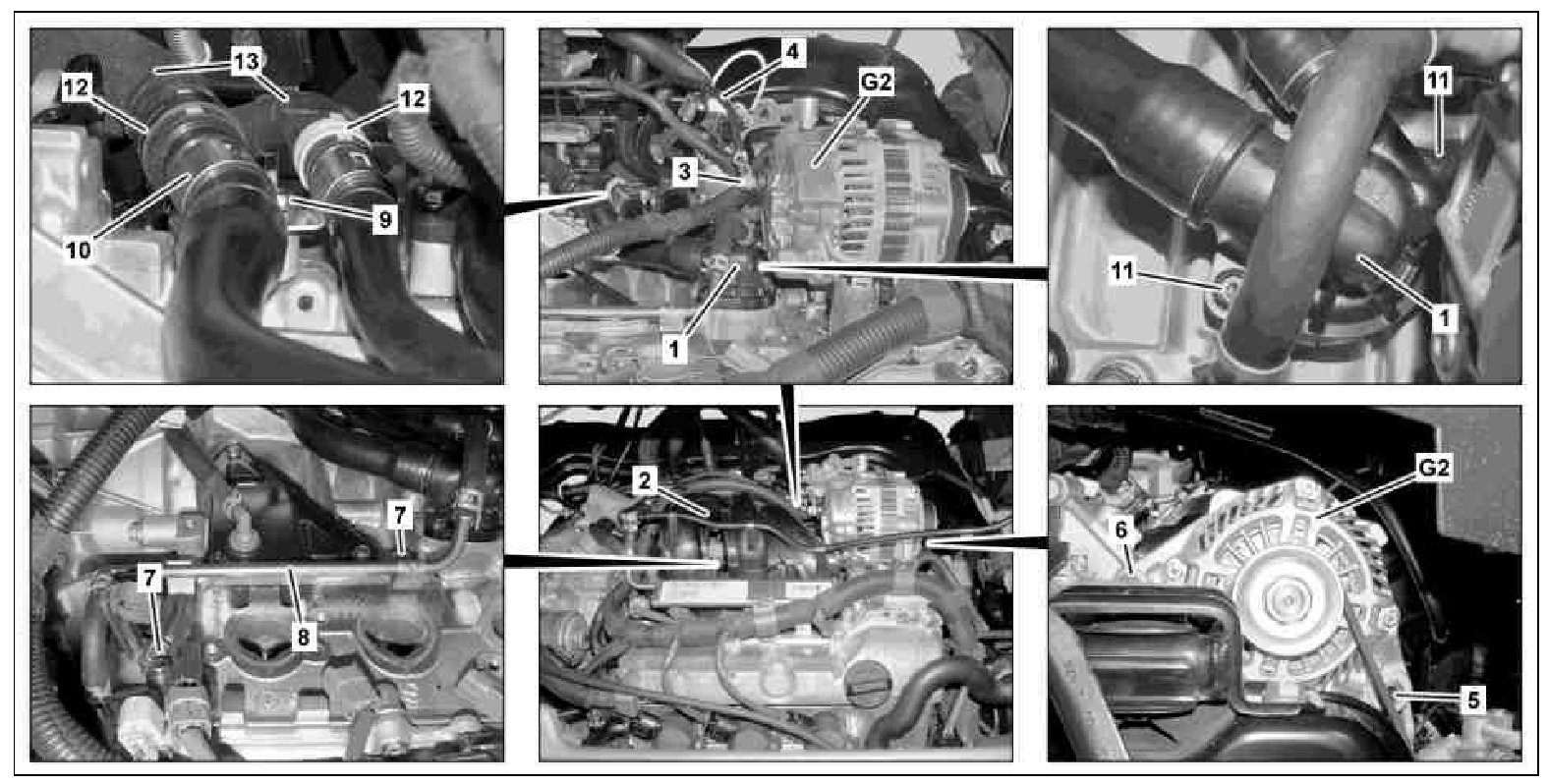

1 Coolant thermostat
2 Intake manifold
3 Nut
4 Charge current line
5 Bolt
6 Bolt
7 Bolt
8 Coolant line
9 Bolt
10 Bracket
11 Bolt
12 Hose clamp
13 Coolant hoses
G2 Alternator
