Removal and Replacement

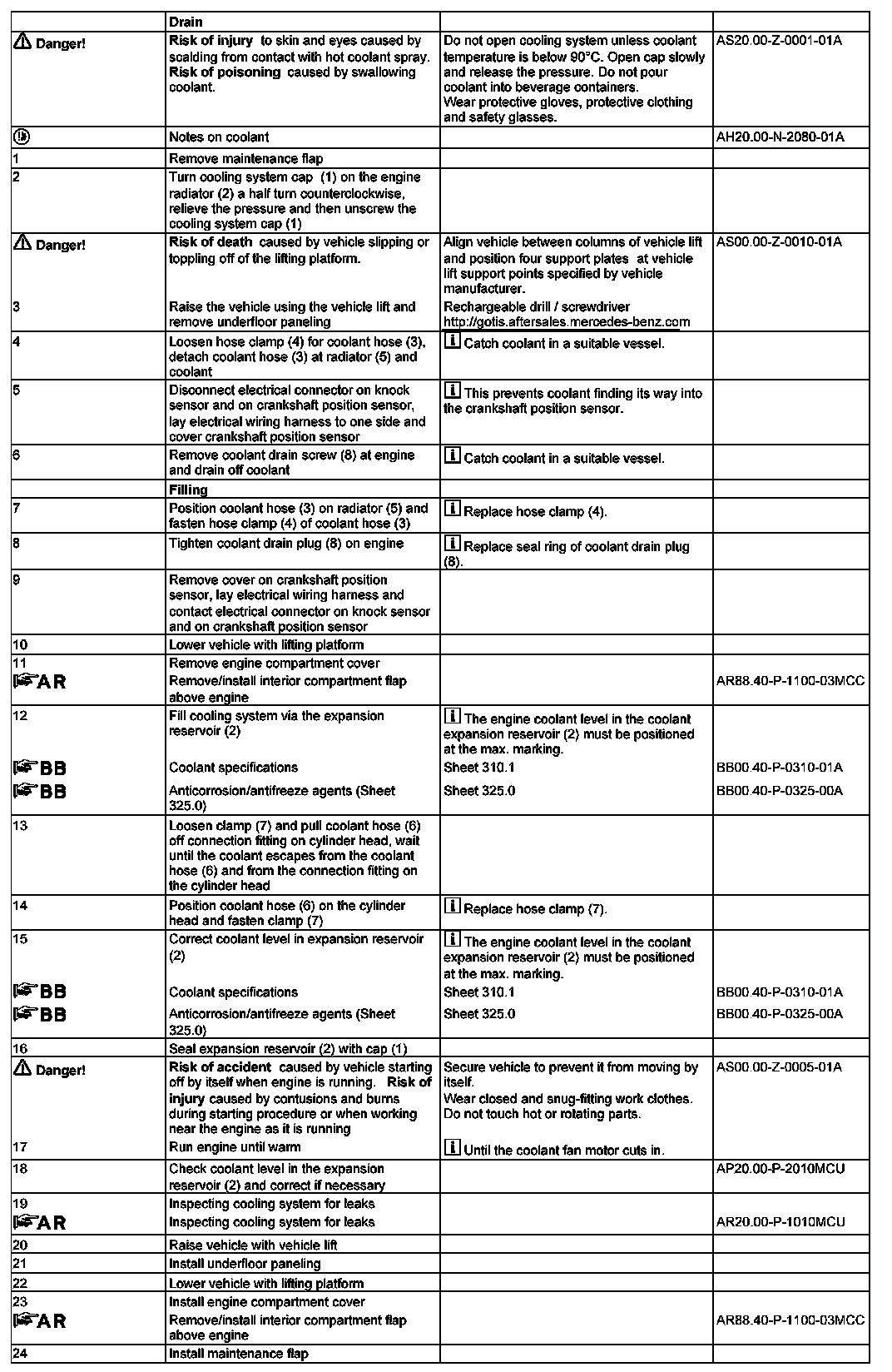

AP20.00-P-2080MCU Replace Coolant

ENGINE 132.910 in MODEL 451.3 /4







1 Cap
2 Expansion reservoir
3 Coolant hose
4 Hose clamp
5 Radiator
6 Coolant hose
7 Hose clamp
8 Coolant drain plug
