ForTwo Cabrio (451.431) L3-1.0L (132.910)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>

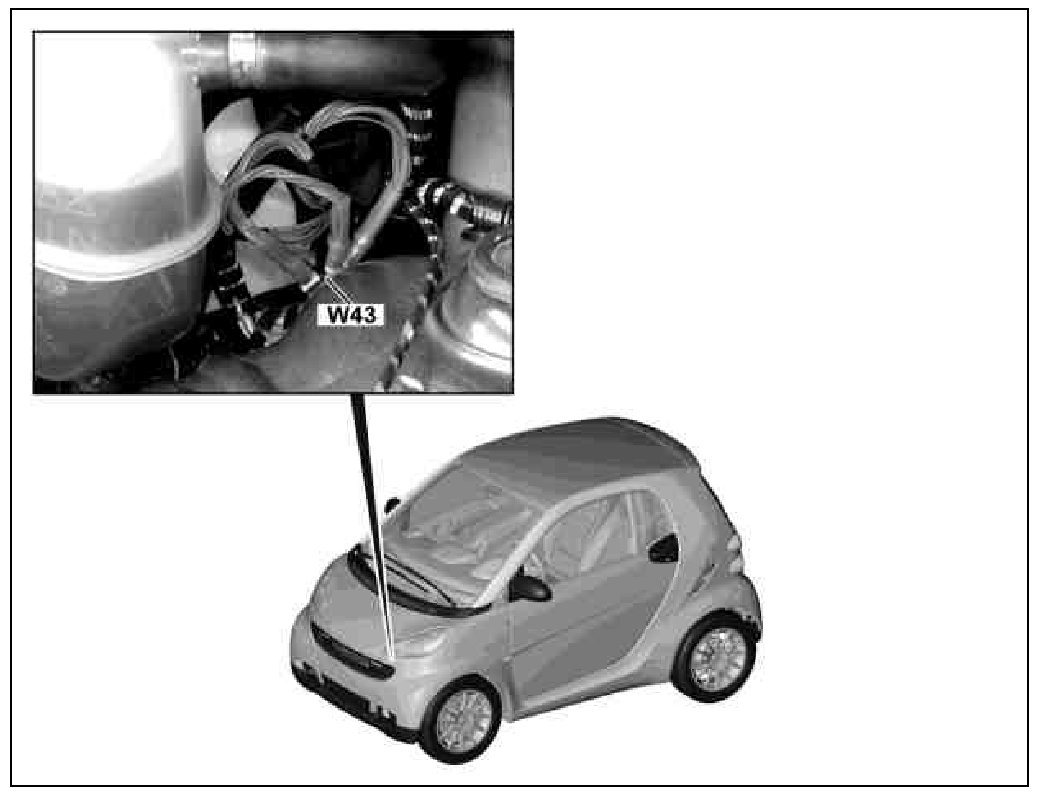

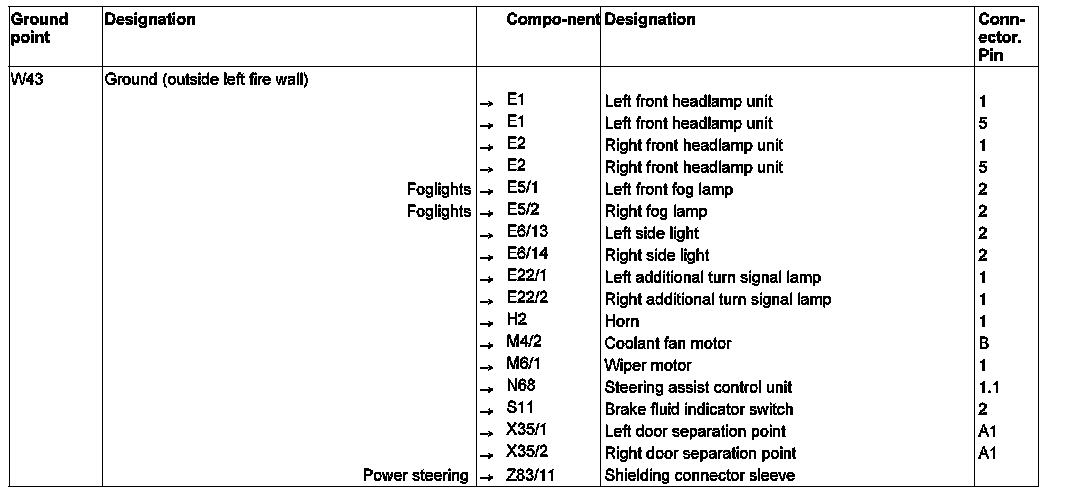

GF00.19-P-2000-30MCU Location and assignment of ground points - left firewall
GF00.19-P-2000-30MCU Location and assignment of ground points - left firewall
GF00.19-P-2000-30MCU Location And Assignment Of Ground Points - Left Firewall
