Steering Wheel

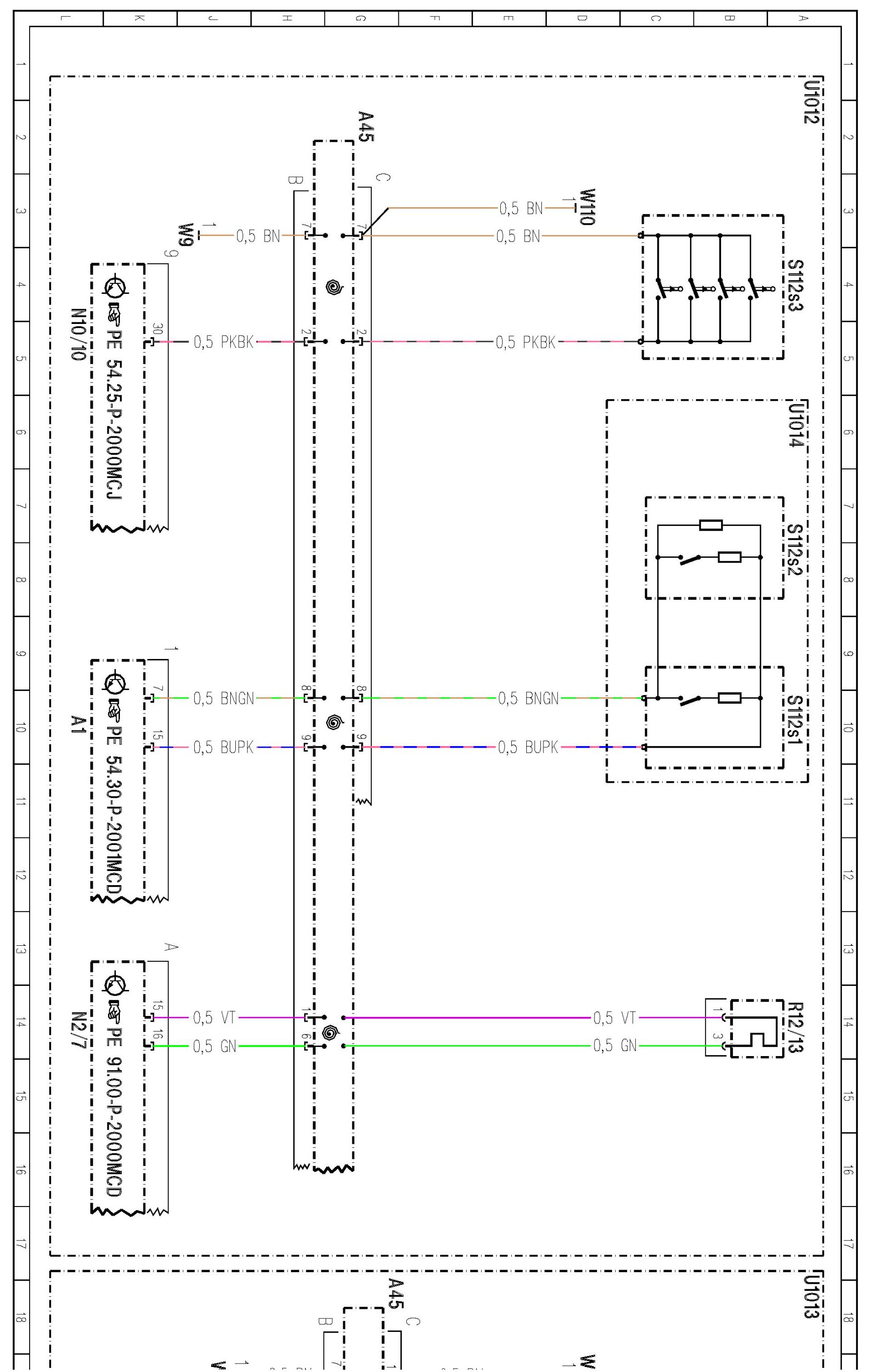

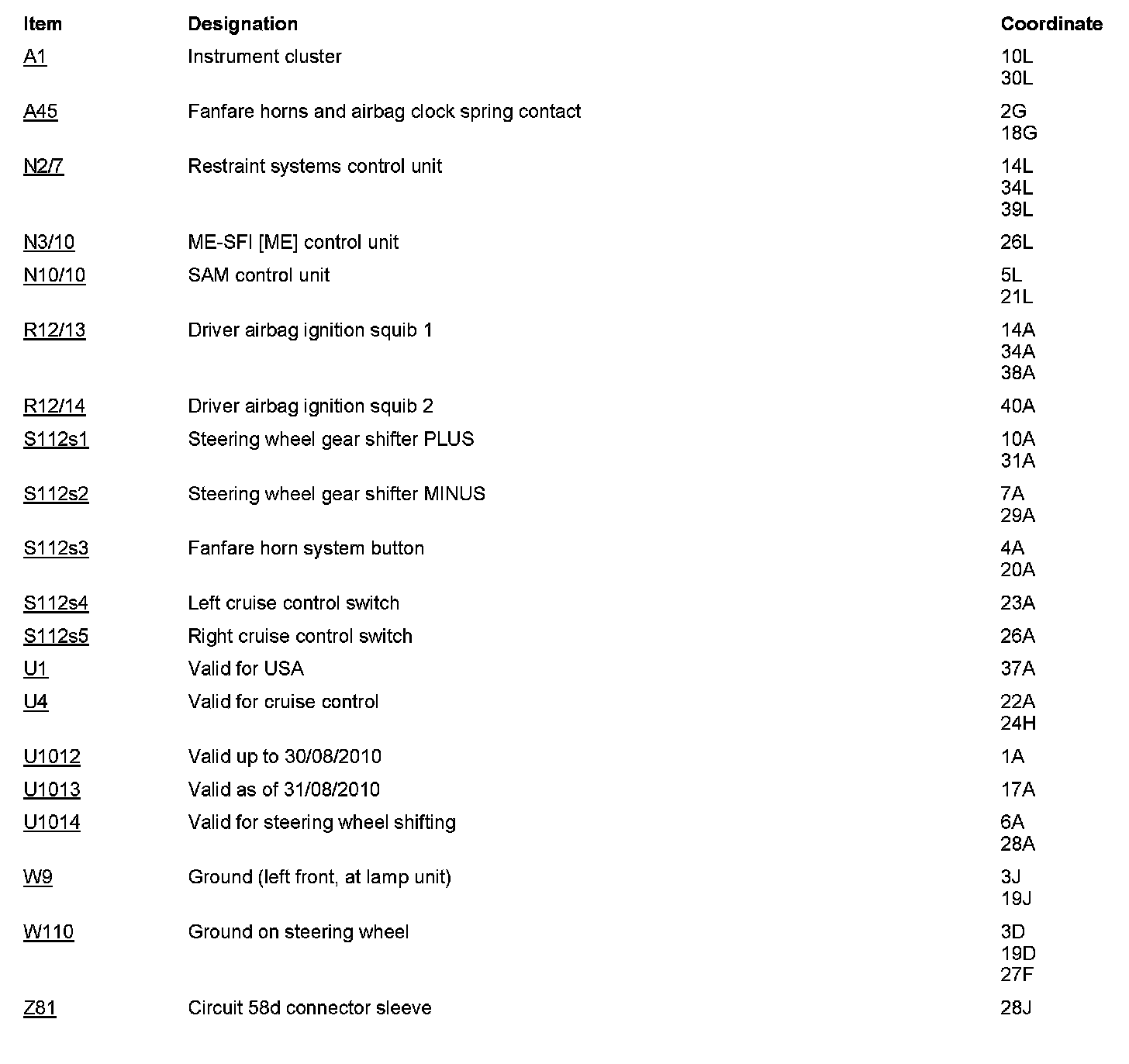

PE46.10-P-2102MCC Steering Wheel Wiring Diagram
451 46 Steering
MODEL 451 (except 451.334 /380 /480) as of 013645 MODEL 451 (except 451.391 /491)

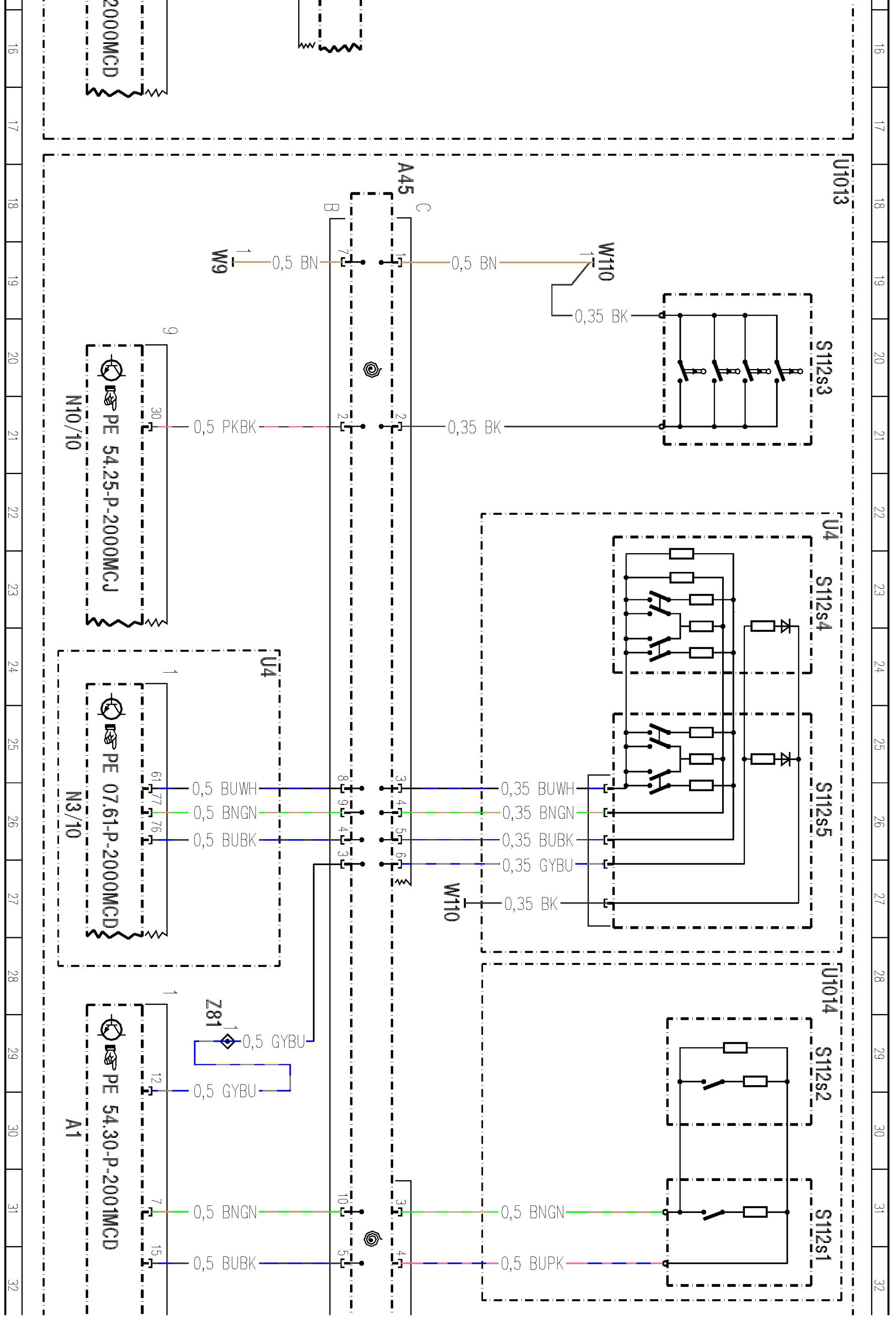

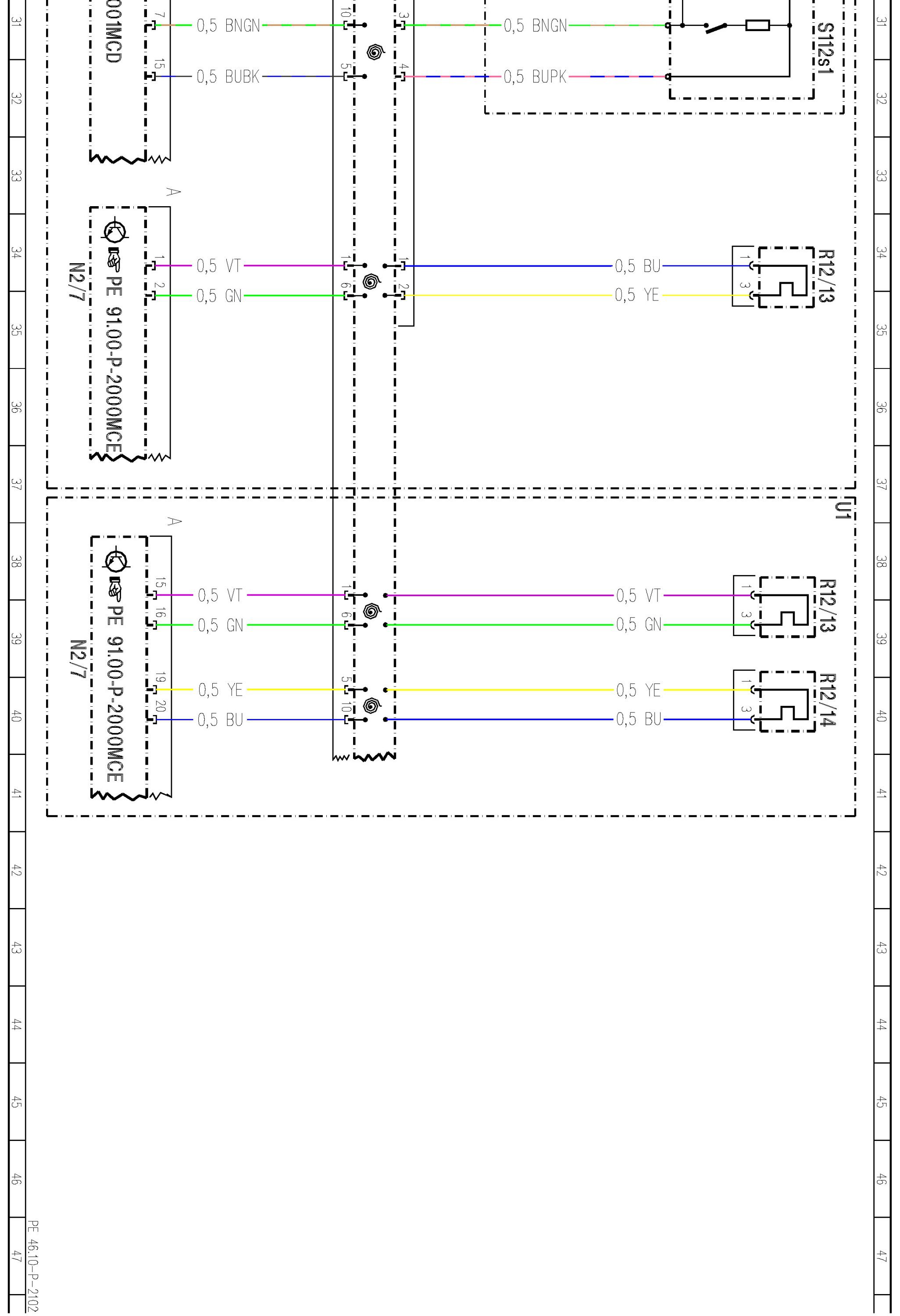

PE46.10-P-2102MCC Steering Wheel Wiring Diagram
451 46 Steering
MODEL 451 (except 451.334 /380 /480) as of 013645 MODEL 451 (except 451.391 /491)
