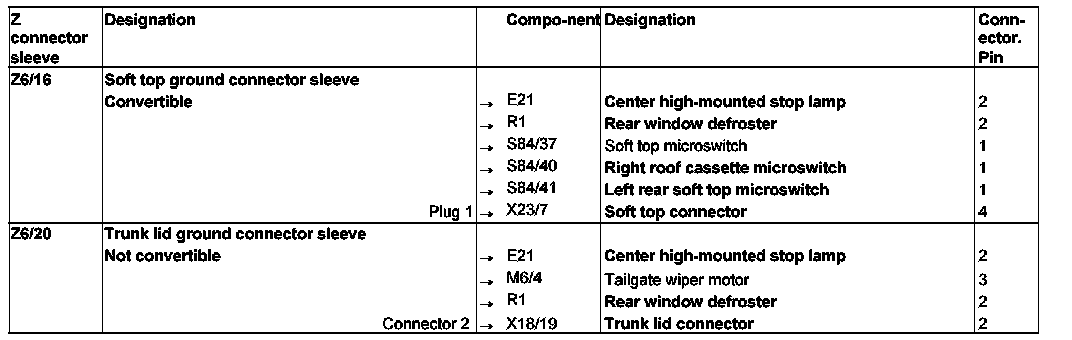

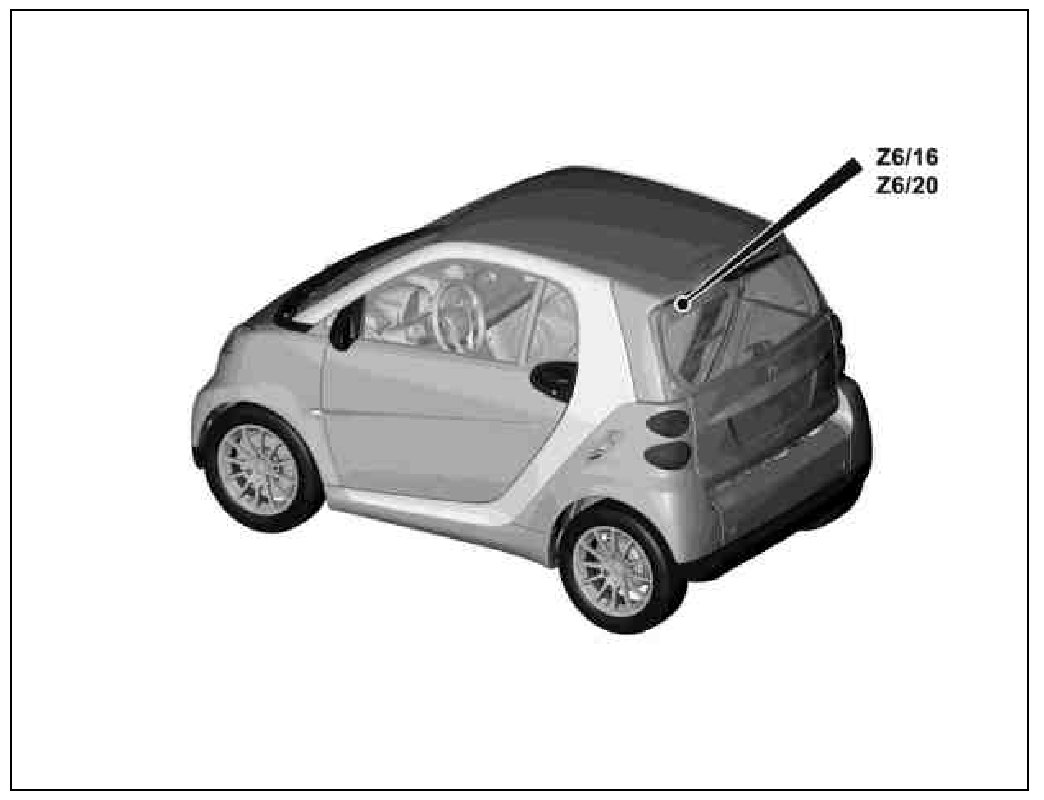

GF00.19-P-3000-19MCU Location and assignment of Z-connector sleeves (line connectors in wiring harness)- rear



GF00.19-P-3000-19MCU Location And Assignment Of Z-connector Sleeves (Line Connectors In Wiring Harness)- Rear
