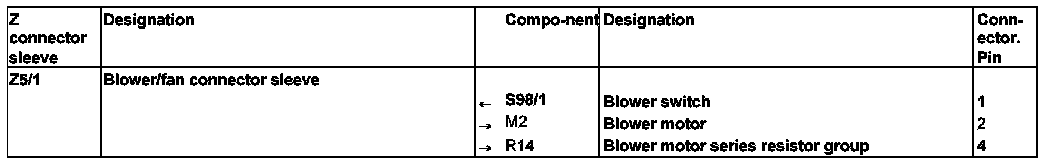

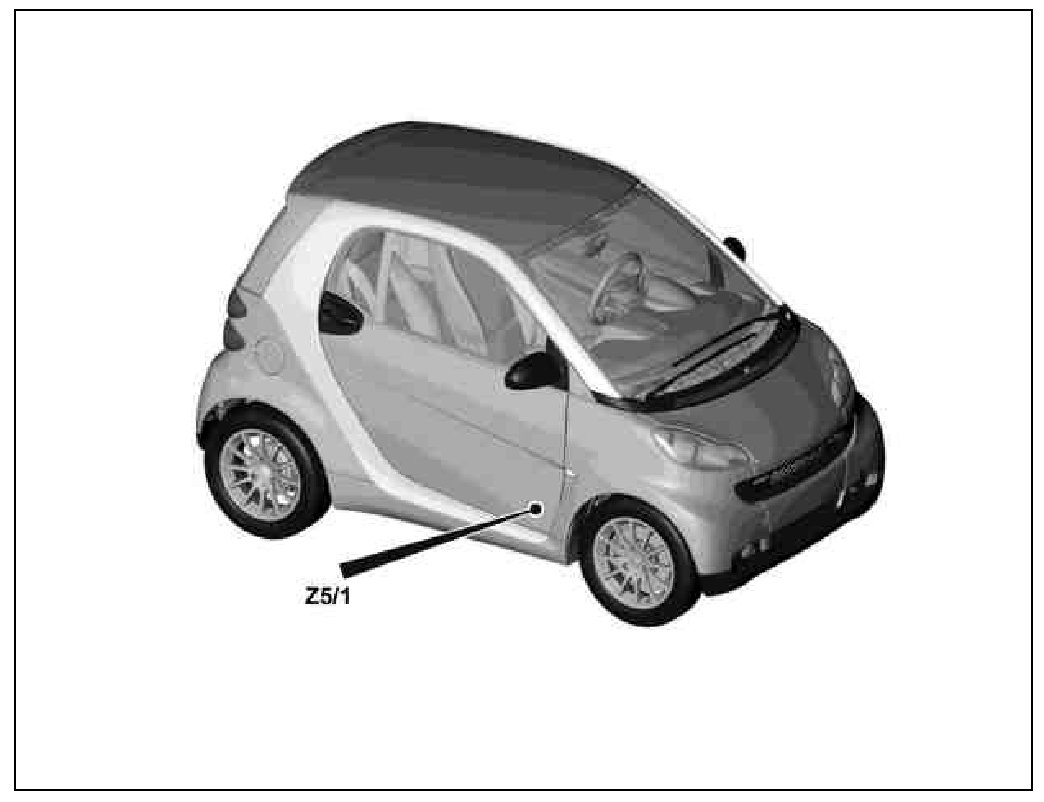

GF00.19-P-3000-18MCU Location and assignment of Z-connector sleeves (line connectors in wiring harness)- right footwell
