GF00.19-P-3000-09MCU Location and assignment of Z-connector sleeves (line connectors in wiring harness) in the area of the cent

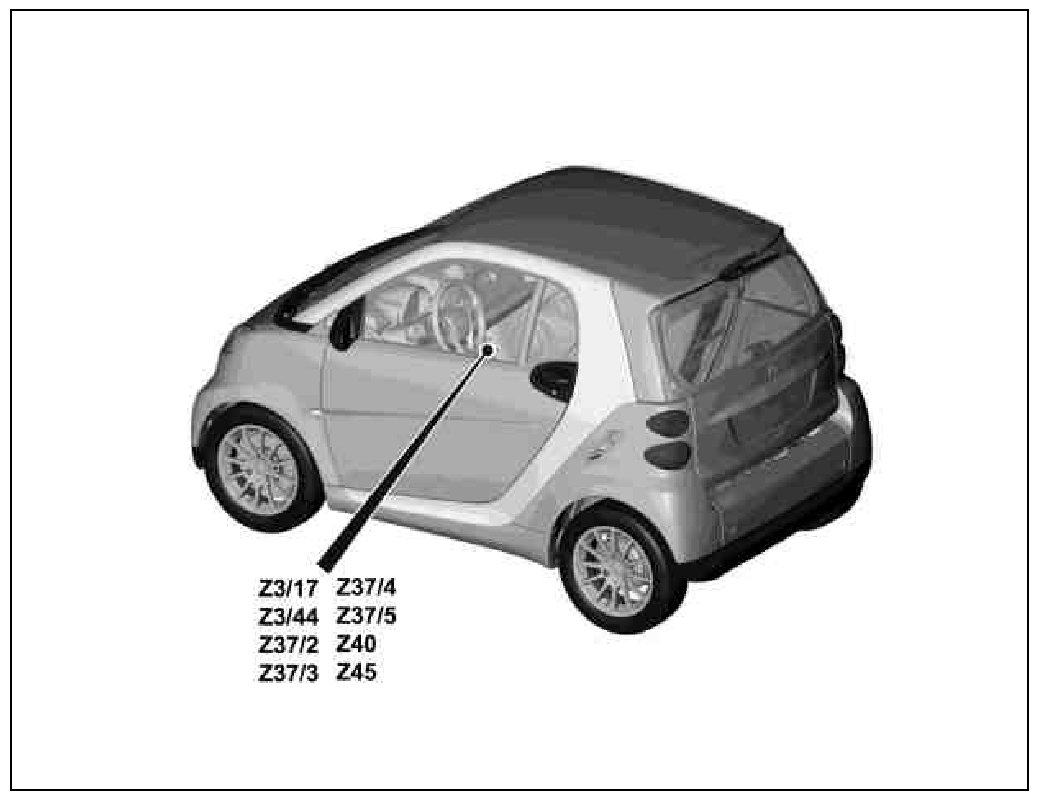

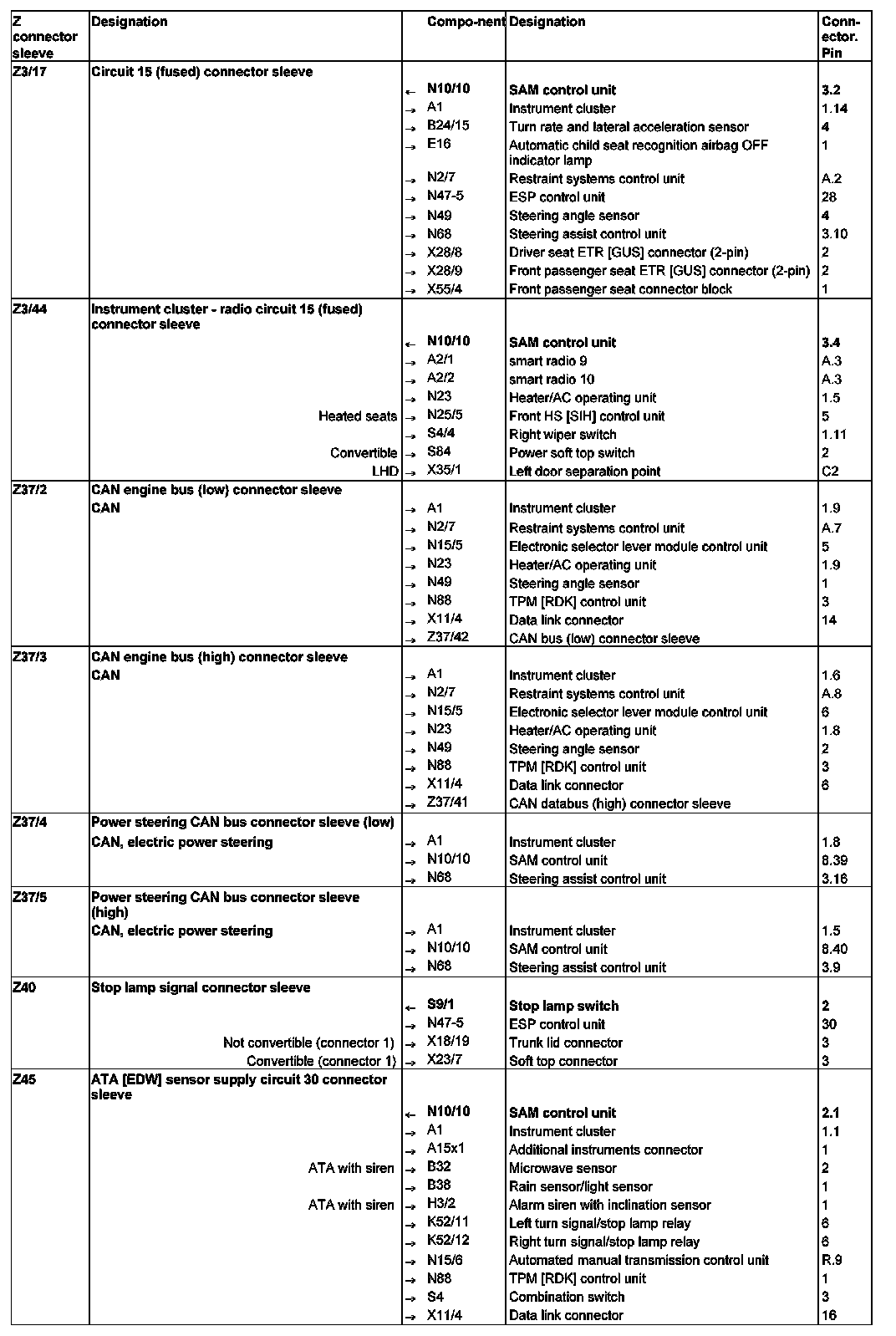

GF00.19-P-3000-09MCU Location And Assignment Of Z-connector Sleeves (Line Connectors In Wiring Harness) In The Area Of The Center Console
