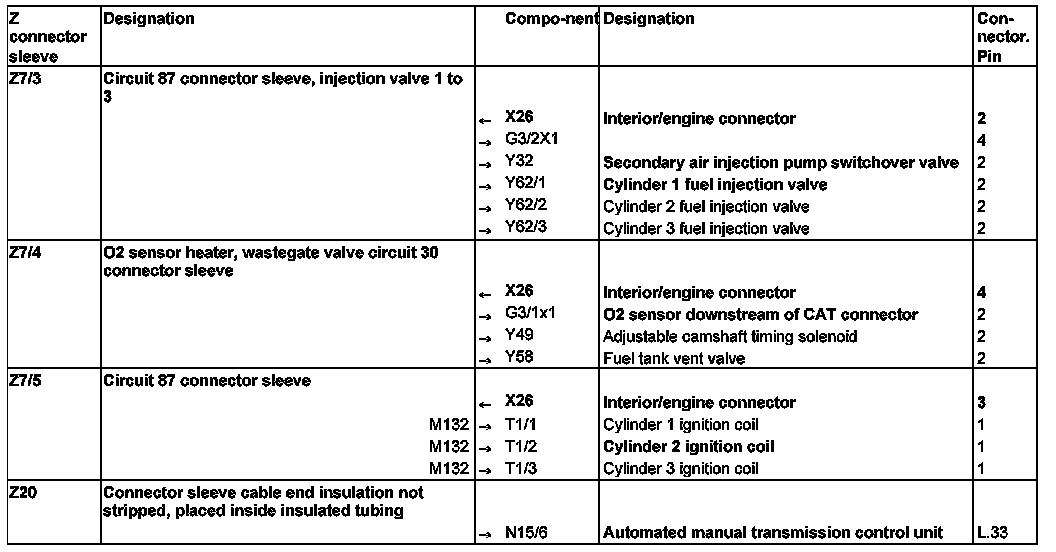

GF00.19-P-3000-01MCU Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment

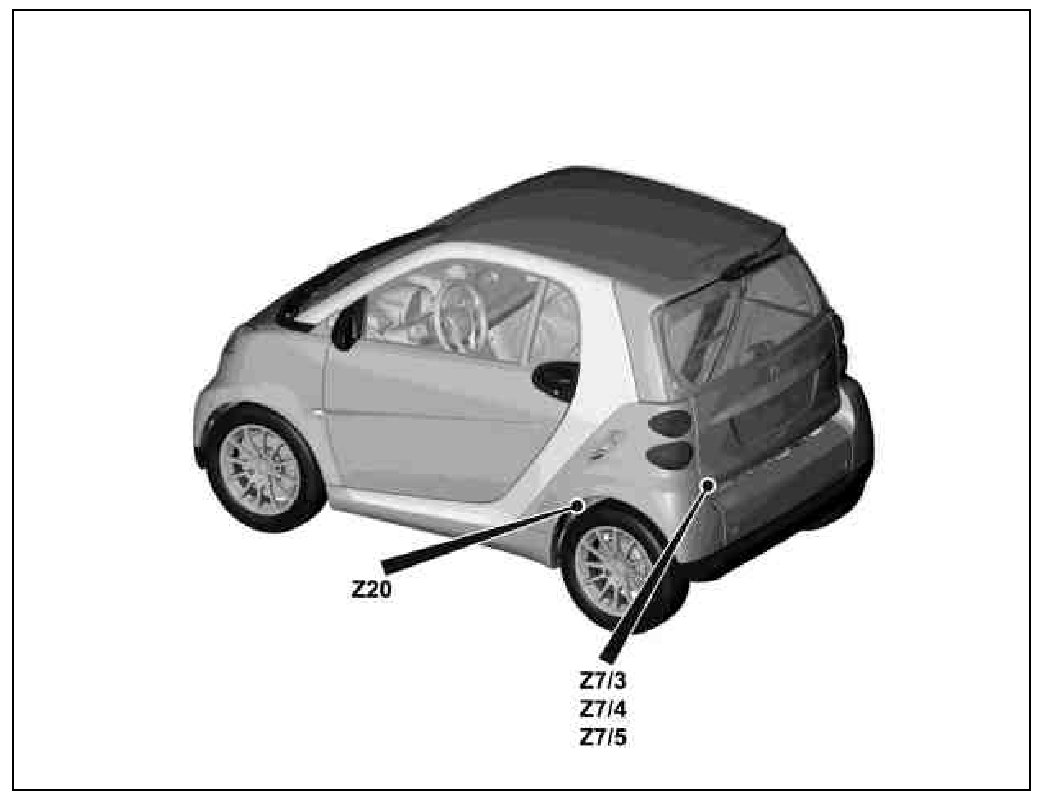

GF00.19-P-3000-01MCU Location And Assignment Of Z Connector Sleeves (Cable Connections In Wiring Harness) - Engine Compartment Left
