Brake Drum: Service and Repair

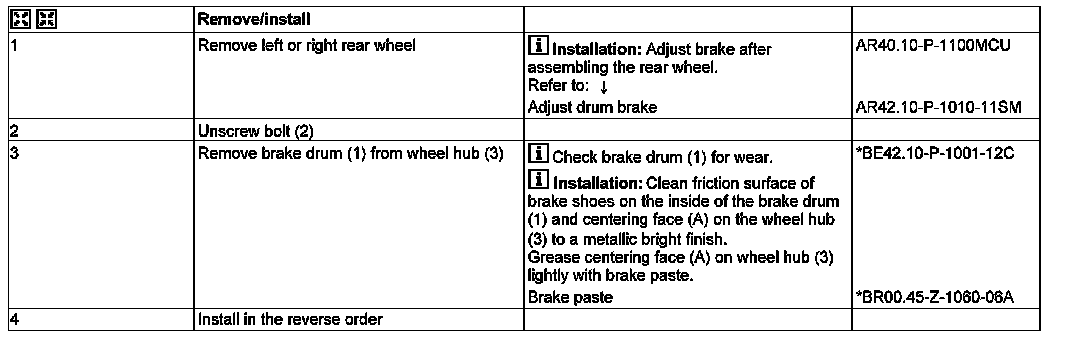

AR42.10-P-1010MCU Remove/Install Brake Drum







1 Brake drum
2 Screw
3 Wheel hub

A Centering surface
