Home >> Smart >> 2010 >> ForTwo Cabrio (451.431) L3-1.0L (132.910) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Function Diagrams >> PE42.45-P-2050-99MCU Electrical Function Diagram For Electronic Stability Program (ESP)

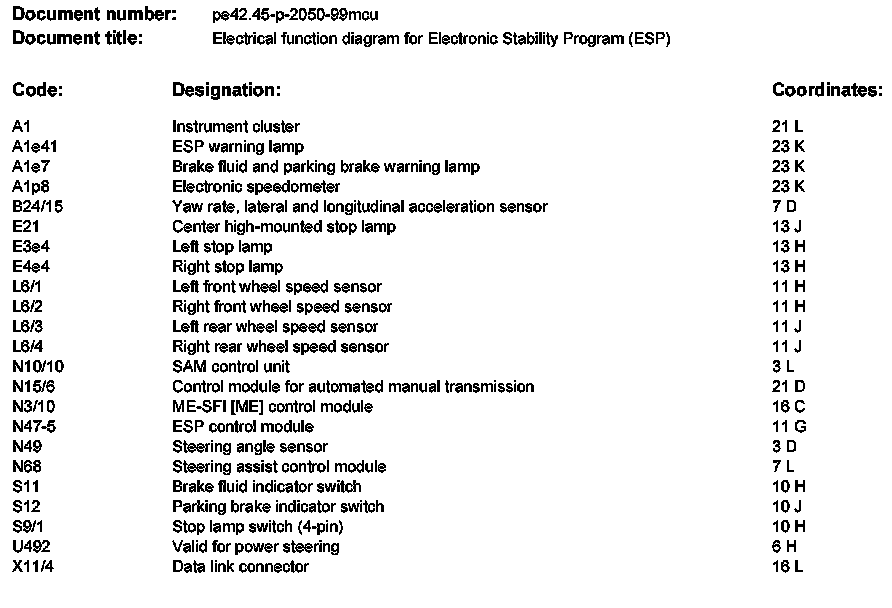

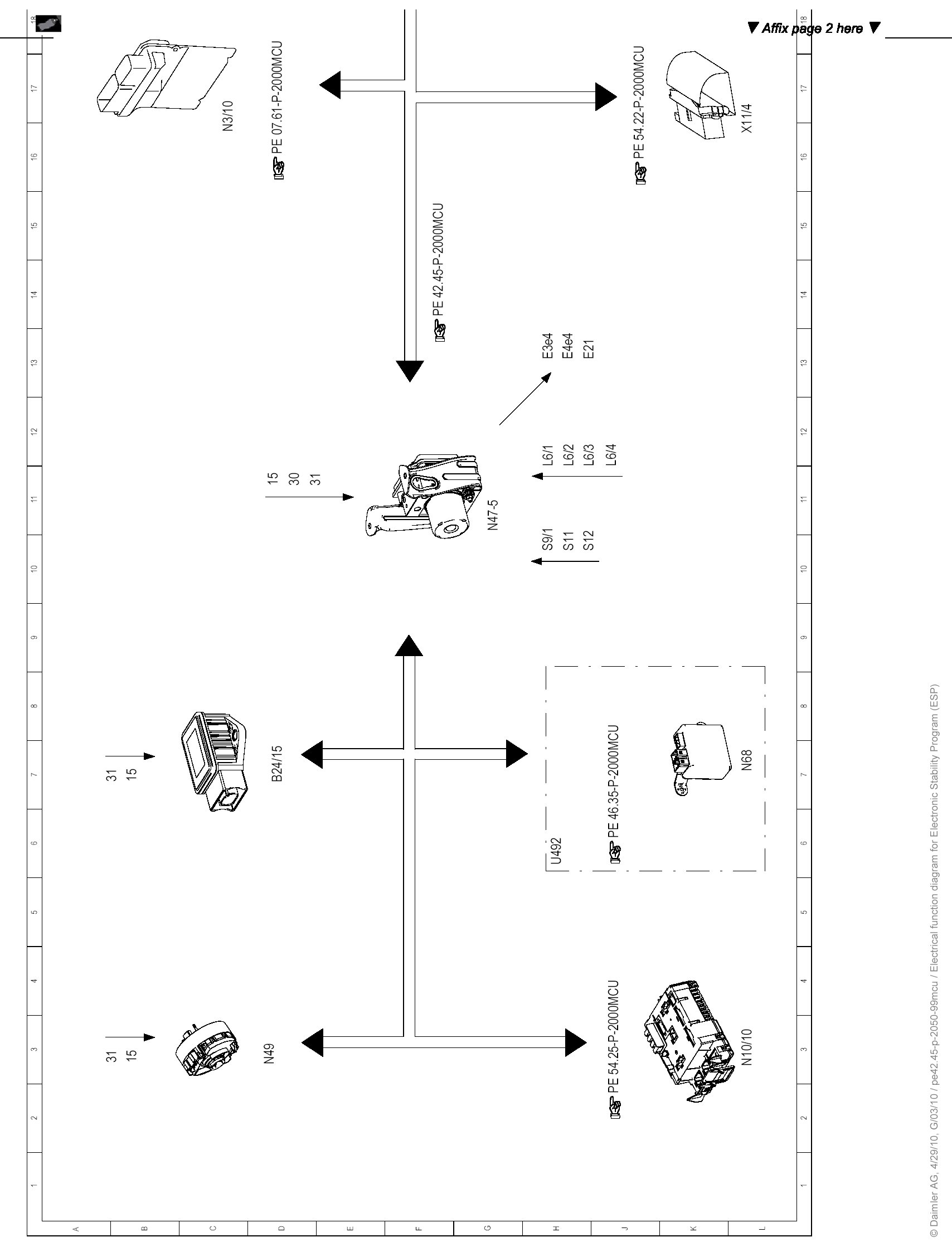

PE42.45-P-2050-99MCU Electrical Function Diagram For Electronic Stability Program (ESP)



PE42.45-P-2050-99MCU Electrical Function Diagram For Electronic Stability Program (ESP)
