AR77.33-P-2030MCU Remove/install roof cassette spoiler

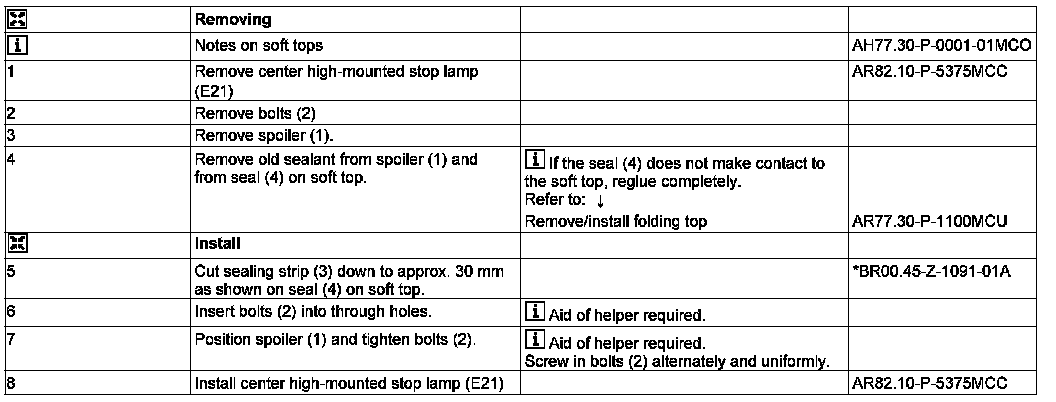

AR77.33-P-2030MCU Remove/Install Roof Cassette Spoiler

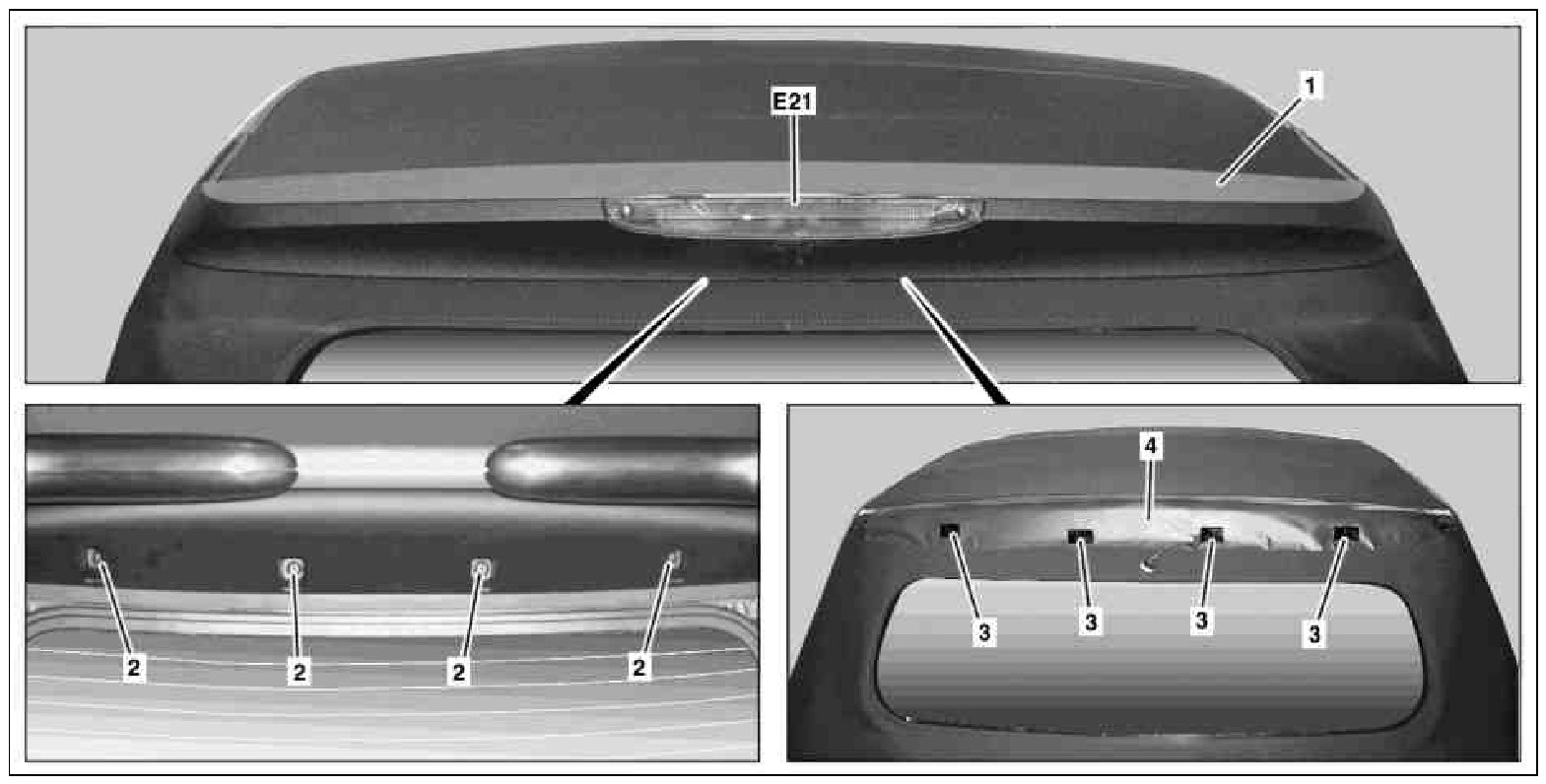

1 Spoiler
2 Screw
3 Sealing strip
4 Sealing
E21 Center high-mounted stop lamp
