Convertible Top Switch: Description and Operation

GF77.39-P-3120MCC Soft Top Actuation Switch, Component Description

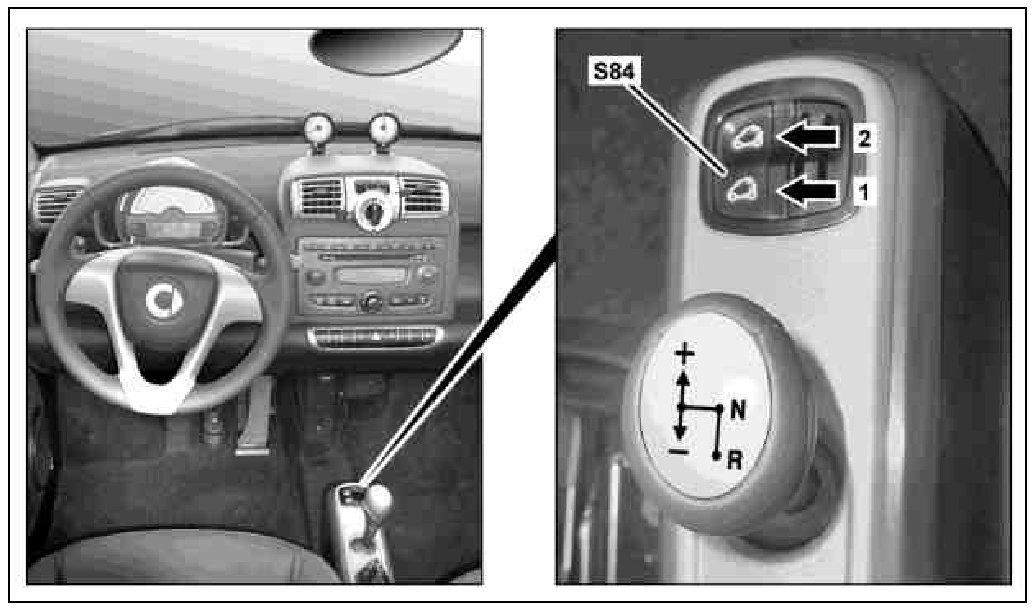

S84 Power soft top switch

Location
The soft top actuation switch is located in the center console.

Task
The soft top and rear soft top can be opened and closed via the soft top actuation switch.The actuation requests are read in directly by the SAM control unit (N10/10).

Operation Open/close soft top
The soft top is opened automatically to the end position by momentarily pressing the soft top actuation switch in the opening direction (arrow 1).
The soft top is opened manually by pressing and holding down the soft top actuation switch in the opening direction (arrow 1). If the opening request is terminated before the rear end position is reached, the soft top stops in the current position.
The soft top is closed by pressing and holding down the soft top actuation switch in the closing direction (arrow 2). If the closing request is terminated before the front end position is reached, the soft top stops in the current position.

Open/close rear soft top
When the soft top is opened completely and the soft top actuation switch is reactuated in the opening direction (arrow 1), the rear soft top is opened.If the opening request is terminated before the end position is reached and below a vehicle speed of 5 km/h, the rear soft top stops in the current position.The rear soft top is opened until the end position is reached at a vehicle speed above 5 km/h.
The rear soft top is closed by actuating the soft top actuation switch in the closing direction (arrow 2).If the closing request is terminated before the end position is reached and below a vehicle speed of 5 km/h, the rear soft top stops in the current position.
The rear soft top is opened until the end position is reached at a vehicle speed above 5 km/h.
