Sunroof / Moonroof Windguard: Service and Repair

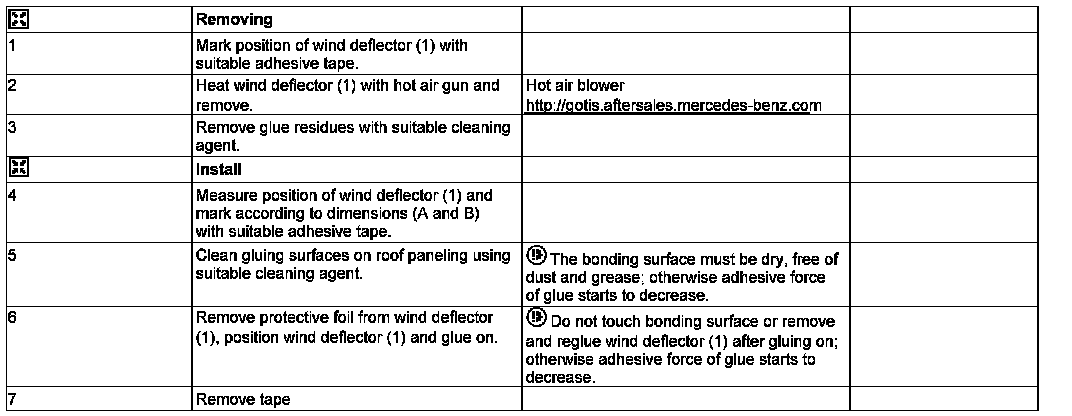

AR77.25-P-1000MCO Remove/Install Wind Deflector

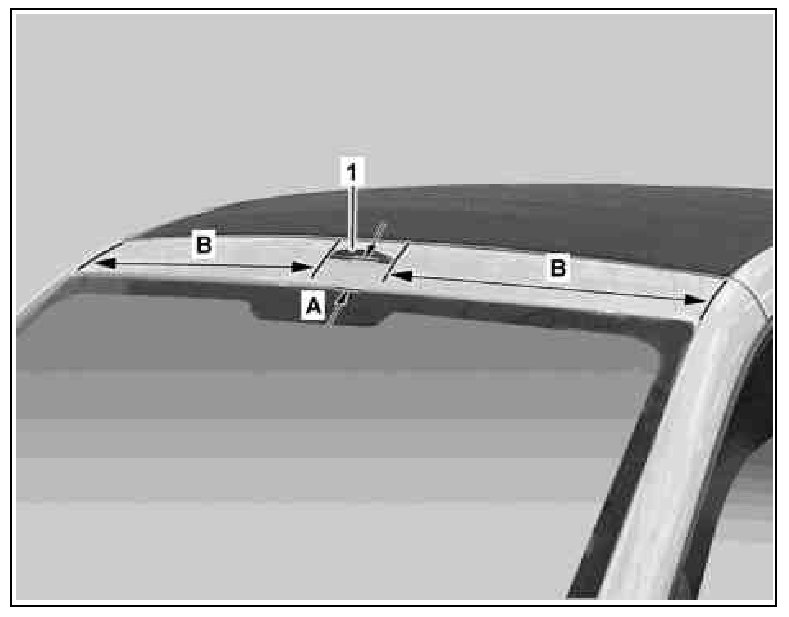

1 Wind deflector

Dimensions:
A 60 mm
B 445 mm
