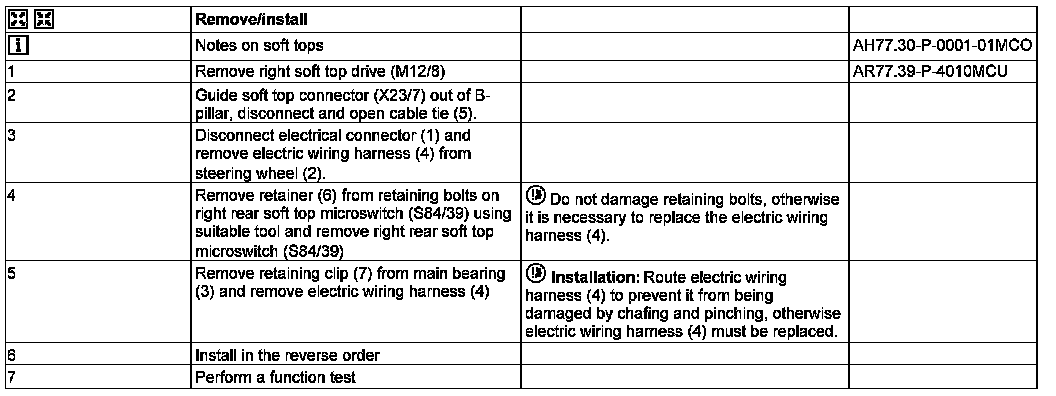

AR77.39-P-1010MCV Remove, install rear soft top drive wiring harness

AR77.39-P-1010MCV Remove, Install Rear Soft Top Drive Wiring Harness

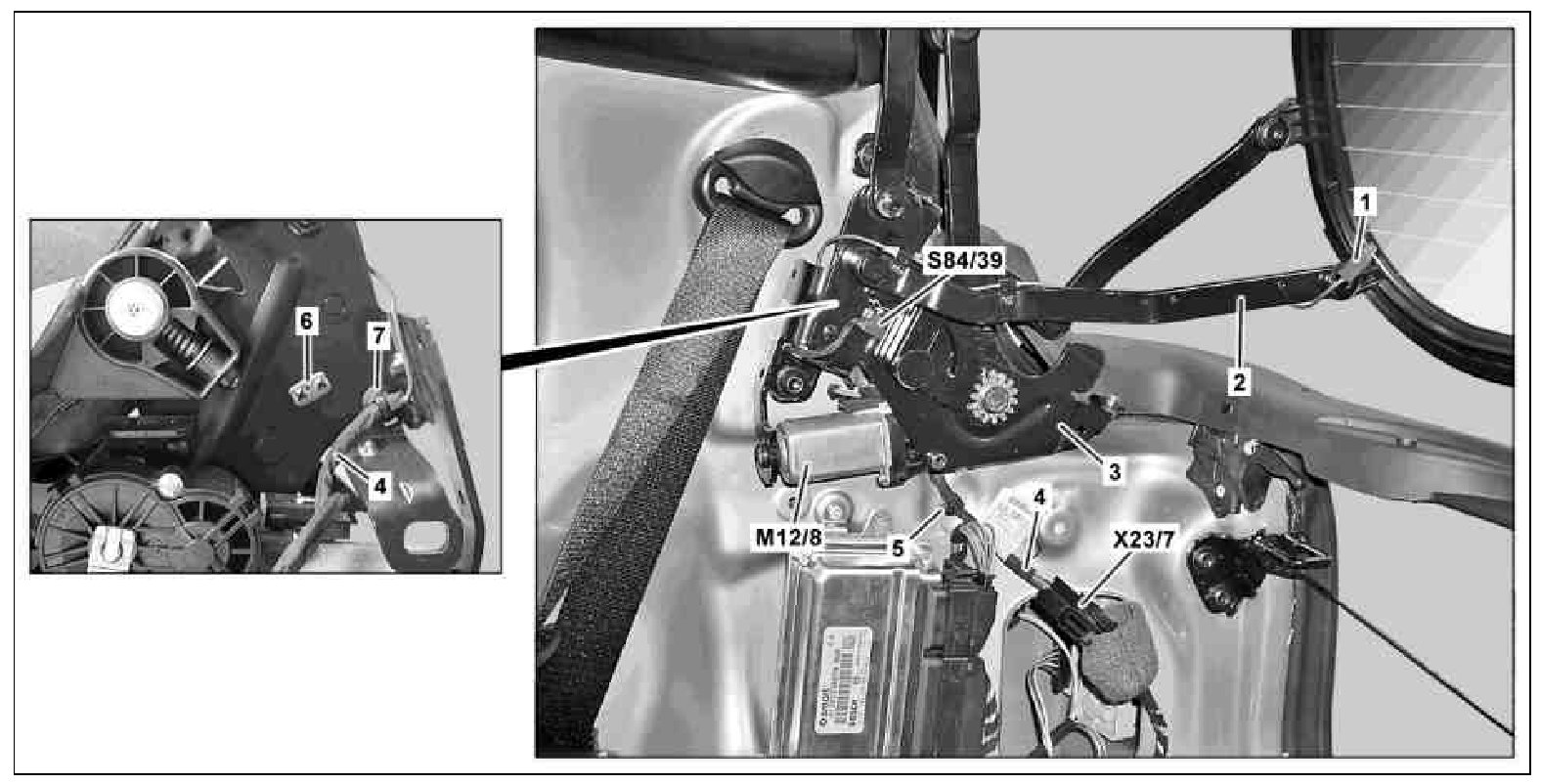

- Right wiring harness







1 Electrical connector
2 Rod
3 Main bearing
4 Wiring harness
5 Cable tie
6 Retainer
7 Retaining clip
M12/8 Right soft top drive
S84/39 Right rear soft top microswitch
X23/7 Soft top connector
