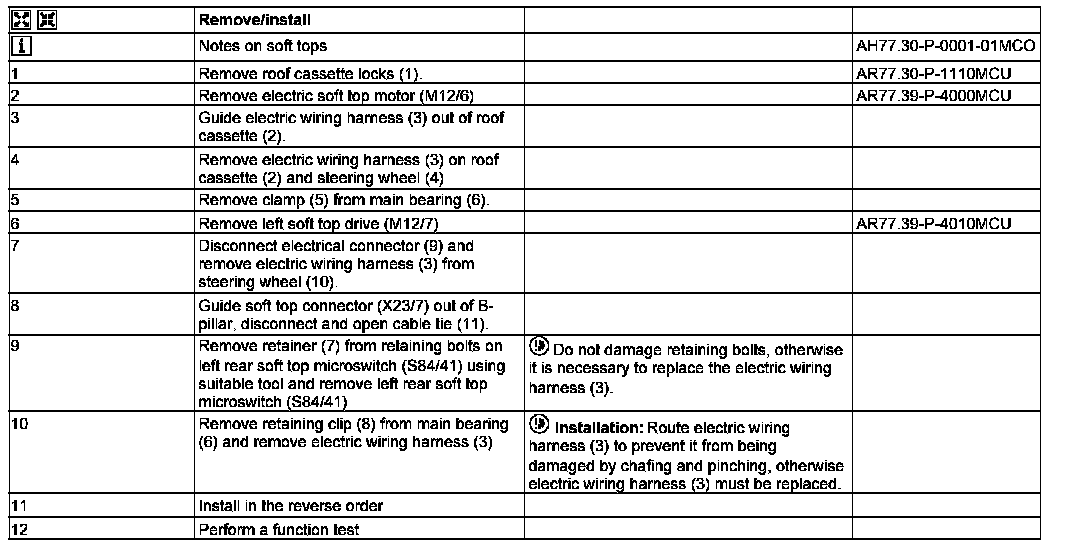

AR77.39-P-1010MCU Remove, install rear soft top drive wiring harness

AR77.39-P-1010MCU Remove, Install Rear Soft Top Drive Wiring Harness
- Left wiring harness

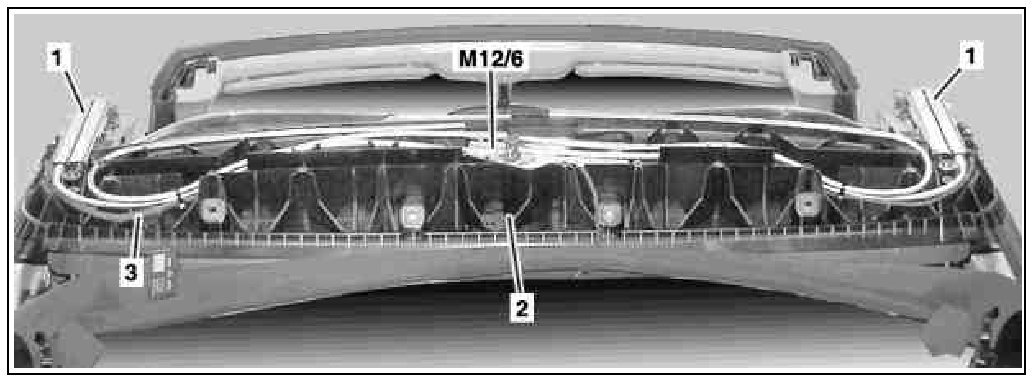

1 Roof cassette plug
2 Roof cassette
3 Wiring harness
M12/6 Electric soft top motor







2 Roof cassette
3 Wiring harness
4 Rod
5 Clip
6 Main bearing

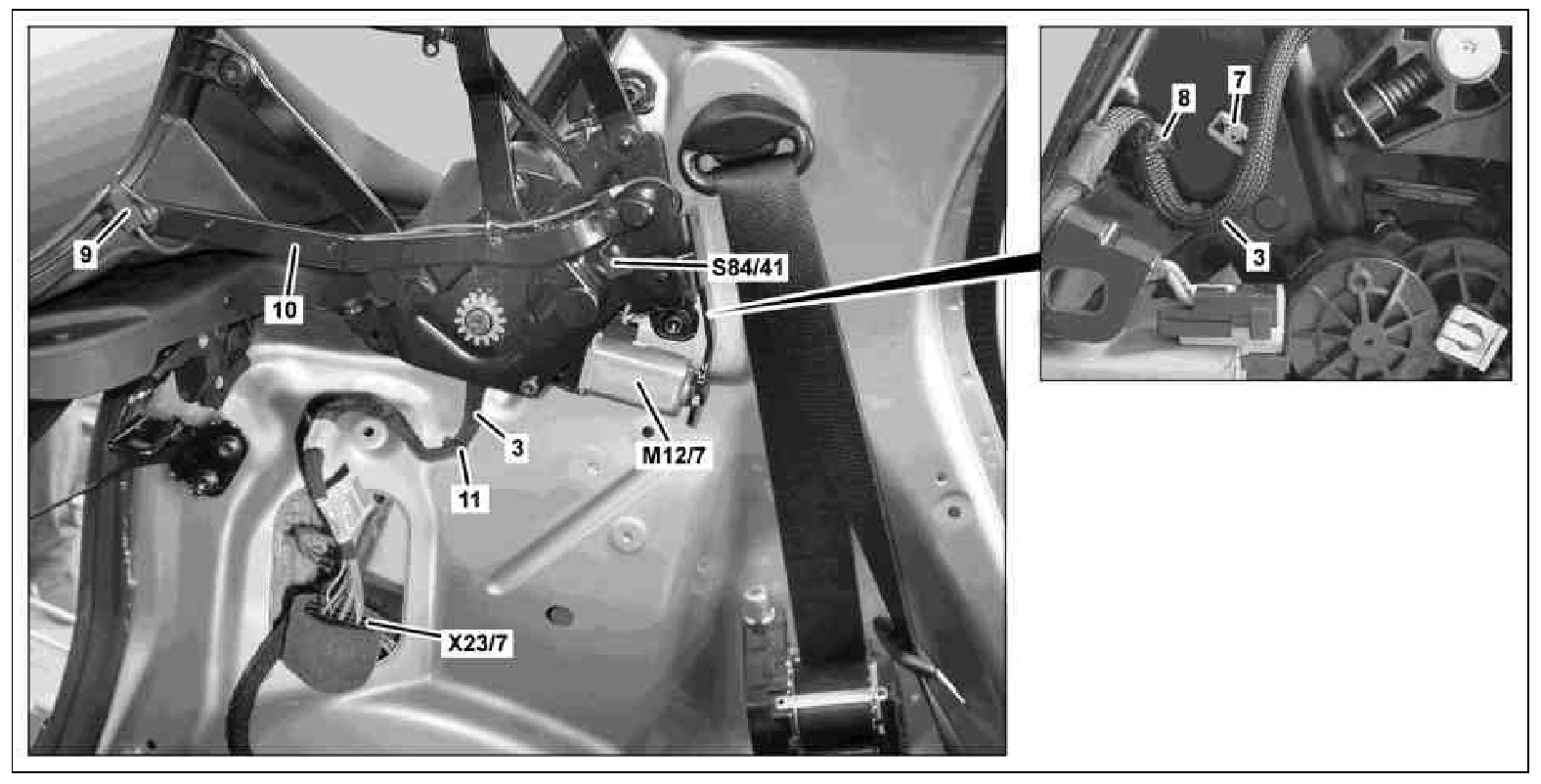

3 Wiring harness
7 Retainer
8 Retaining clip
9 Electrical connector
10 Rod
11 Cable tie
M12/7 Left soft top drive
S84/41 Left rear soft top microswitch
X23/7 Soft top connector
